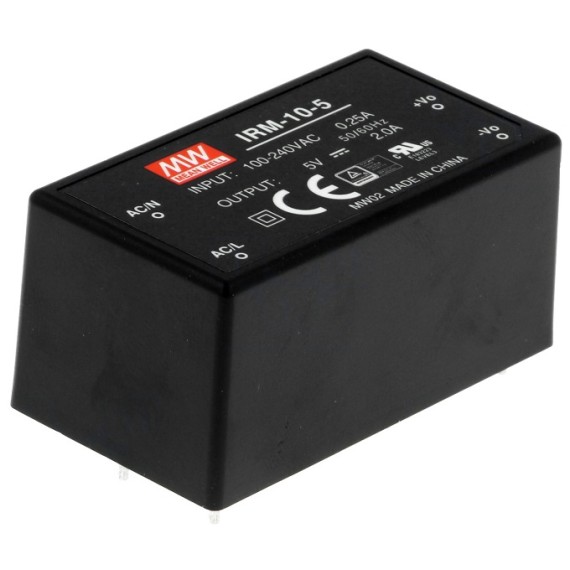

PCB Power Supply 5V 10W 2A MeanWell - IRM-10-5

48-00033312
Company: MeanWell
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
9.90
Without VAT 7.98
+
WISHLIST COMPARE

SPECIFICATIONS

Power:
10Watt
Output Voltage:
5V DC
Output Current:
2Amp
Supply Voltage:
  • 120...370V DC
  • 85...264V AC
Protection:
  • anti-overvoltage
  • short-circuit
  • voltage growth
Number of Outputs:
1
Mounting:
PCB
Efficiency:
77%
Power Supply Dimensions:
45.7 x 25.4 x 21.5mm

EXTRA SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Kind of power supply: Modular
  • Power: 10W
  • Output voltage: 5V DC
  • Output current: 2A
  • Number of outputs: 1
  • Mounting: PCB
  • Operating temperature: -30...70°C
  • Supply voltage: 120...370V DC, 85...264V AC
  • Electrical connection: THT
  • Protection: Overload, voltage growth, short-circuit
  • Efficiency: 77%
  • Series: IRM-10

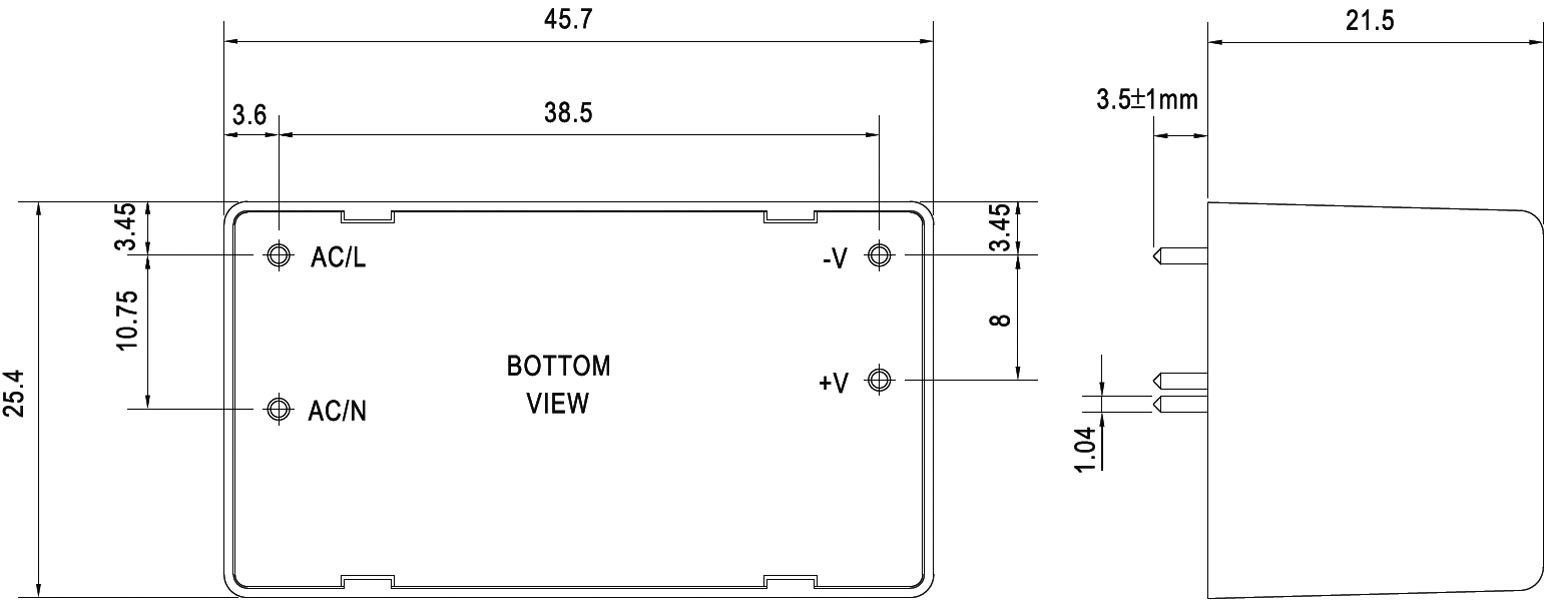

Dimensions


  • Body: 45.7 x 25.4 x 21.5mm
  • Weight: 40g
