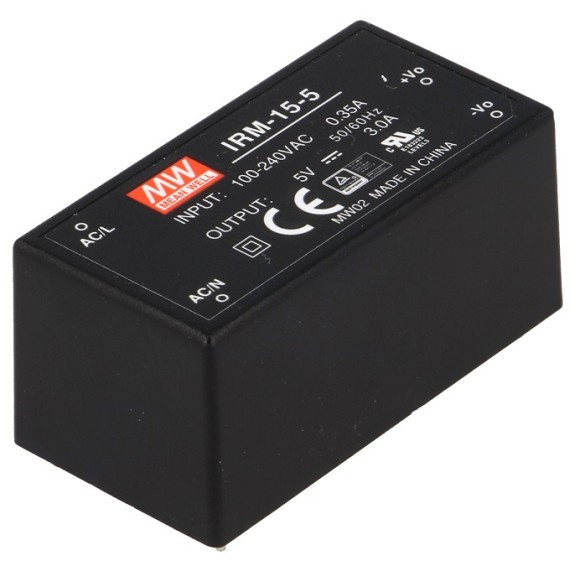

PCB Power Supply 5V 15W 3A MeanWell - IRM-15-5

48-00033313
Company: MeanWell
Made in: China
Out of Stock
Product out of stock
Low stock in store
12.00
Without VAT 9.68

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Power:
15Watt
Output Voltage:
5V DC
Output Current:
3Amp
Supply Voltage:
  • 120...370V DC
  • 85...264V AC
Protection:
  • anti-overvoltage
  • short-circuit
  • voltage growth
Number of Outputs:
1
Mounting:
PCB
Efficiency:
78%
Power Supply Dimensions:
52.4 x 27.2 x 24mm

EXTRA SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Kind of power supply: Modular
  • Power: 15W
  • Output voltage: 5V DC
  • Output current: 3A
  • Number of outputs: 1
  • Mounting: PCB
  • Operating temperature: -30...70°C
  • Supply voltage: 120...370V DC, 85...264V AC
  • Electrical connection: THT
  • Protection: Overload, voltage growth, short-circuit
  • Efficiency: 78%
  • Series: IRM-15

Dimensions


  • Body: 52.4 x 27.2 x 24mm
  • Weight: 59g
