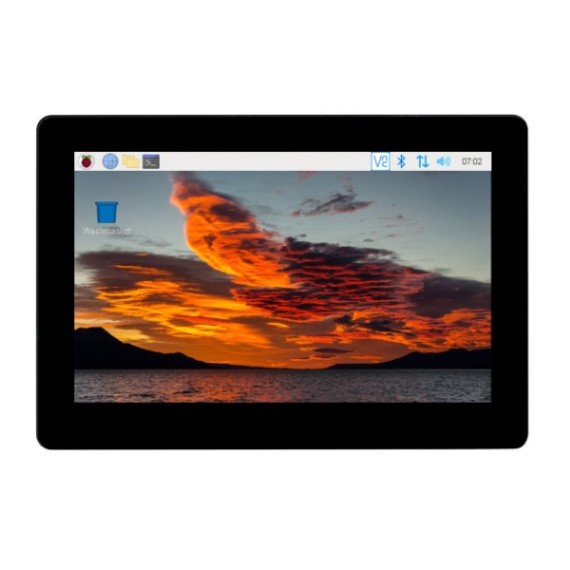

Pi Display 5" 800x480, DSI interface, Capacitive Touchscreen - for CM4

31-00022024
306073
CompanyWaveshare Part Number306073
In Stock
Ships in 24 Hours
11990
Our quantity discounts:
Quantity
10+
Price
107.91
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

5″ Touch Screen Expansion For Raspberry Pi Compute Module 4, PoE Header, Gigabit Ethernet, 4K Output

5″ Touch Screen Expansion Board

Designed for Raspberry Pi Compute Module 4

5″ HD Display

5″ 800x480 Pixels Display, Clear Details

IPS Natural Color

Wide Viewing Angle, Fast Response, Precise And Natural Color
No Ripple On Touch, Better Touch Experience

4K Output To External Display

Supports 4K (3840x2160) 30fps Output Via HDMI Port
Fully Releasing The Vision Potentiality

Slide To Adjust The Brightness

The Backlight Brightness Is Adjustable By Software For Different Scenarios
More Power Saving For The Night Or Battery-Powered Projects

5-Point Capacitive Touch

Up To 5-Point* Capacitive Touch Screen
Just Gently Touch It Without Any Force, That Is "Capacitive"



  • The actual touch points depend on the software system



Onboard Fan Header With Speed Adjustment And Measurement Support
Compatible With 5V/12V Cooling Fans

Interface Introduction

Application Example

Suitable For Raspberry Pi Applications Or Industrial Scenarios Requiring Multi-Function Peripherals



NOTES

  • The CM4, cooling fan, and M.2 SSD are NOT included.
  • CM4 Socket: suitable for all variants of Compute Module 4
  • Networking:
    • Gigabit Ethernet RJ45 connector
    • M.2 M KEY, supports NVME SSD
  • POE: PoE header (additional PoE HAT is required to enable PoE feature)
  • USB: USB 2.0 × 4
  • Display: 5″ screen, 800 × 480 pixels, 5-point capacitive touch
  • Camera: MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector)
  • Video: HDMI, supports 4K 30fps output
  • RTC: Real-time clock with battery socket and ability to wake Compute Module 4
  • Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
  • Fan Header: allows speed adjustment and measurement, 5V / 12V
  • Power Input: 5V
  • Dimensions: 127.7x87.45mm

M.2 slot
supports M.2 M-key SSD

4x USB 2.0
adequate connectors, for more USB devices as you like

Gigabit Ethernet
RJ45 Gigabit Ethernet connection, say goodbye to the snail

Dual MIPI CSI-2 ports
allows connecting single camera or binocular cameras with different pixels

Warranty
12 Months Manufacturer Warranty
Company
Waveshare
G. Weight
0.085kg
Display Size
5 "
Resolution
800x480
Aspect Ration
  • 16:10
Display Color
  • Colorful
Touchscreen
Capacitive
Interface
  • CM4 Socket
