Waveshare CM4 IO Board with PoE Feature

από WAVESHARE
Compute Module 4 PoE Board Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products PoE Base Board for all Compute Module...
31-00018606
Ογκομετρικό βάρος: 0.17kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Χώρα Προέλευσης: Κίνα
Κατόπιν Παραγγελίας
Παράδοση 2-6 Εβδομάδες
Χωρίς απόθεμα στο φυσικό κατάστημα
49.90
Χωρίς ΦΠΑ 40.24
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 47.41

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

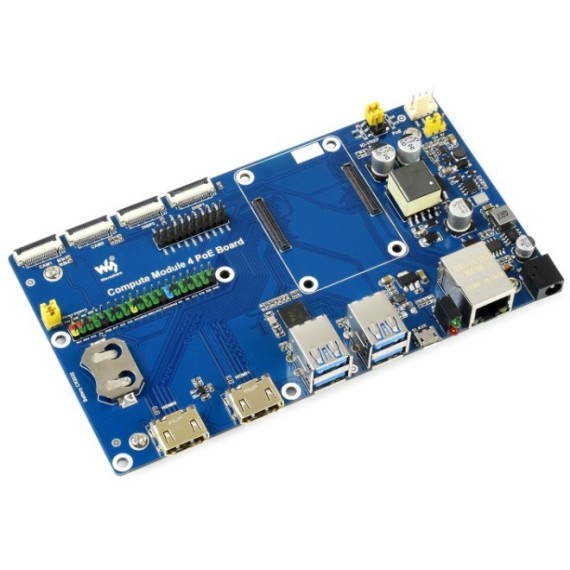

Compute Module 4 PoE Board

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

PoE Base Board for all Compute Module 4 Variants

What's The Differences


WAVESHARE CM4 POE IO BOARD

RASPBERRY PI CM4 IO BOARD
POE integrates 802.3af-compliant PoE circuit (5V/2.5A) PoE header only
USB 4x USB 3.2 Gen1 ports
Micro USB port
2x USB 2.0 ports
Micro USB port

ETHERNET Gigabit Ethernet RJ45 with PoE support Gigabit Ethernet RJ45 with PoE support
HEADER Color-coded 40PIN GPIO header 40PIN GPIO header
standard PCIe Gen 2 × 1 socket

FAN 5V / 12V standard fan connector 12V standard fan connector
POWER INPUT 7V~36V 12V
CM4 SOCKET suitable for all variants of Compute Module 4
RTC Real-time clock with battery socket and ability to wake Compute Module 4
VIDEO 2x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
CAMERA 2x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
SD CARD SLOT MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
DIMENSIONS 160 × 90mm

What's On Board



  1. CM4 socket
    suitable for all variants of Compute Module 4
  2. Power input
    7~36V wide range power supply
  3. Gigabit Ethernet connector
    Gigabit Ethernet RJ45 with PoE support
  4. USB SLAVE port
    allows burning system image into Compute Module 4 eMMC variants
  5. USB3.2 ports
    4x USB 3.2 Gen1 ports, for connecting sorts of USB devices
  6. HDMI ports
    2x HDMI ports, supports dual 4K 30fps output
  7. RTC
    RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more
  8. CAM
    2x MIPI CSI camera ports
  9. DISP
    2x MIPI DSI display port
  1. FAN
    for connecting cooling fan, allows speed adjustment and measurement
  2. FAN power selection
    5V or 12V voltage to drive the fan
  3. IO-VREF/PoE selection
    CM4 IO logic level: 3.3V or 1.8V
    PoE: enable (EN) or disable (DIS)
  4. 40PIN GPIO header
  5. CAM0 and DISP0 I2C bus
    fit the jumpers when using CAM0 or DISP0
  6. Misc configurations
  7. Dual LED indicators
    red: Raspberry Pi power indicator
    green: Raspberry Pi operating statusindicator
  8. TF card slot (bottom side)
    insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite

Connecting With Compute Module 4

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For All Variants Of Compute Module 4

Rich Peripheral Connectors

Onboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF Card

Application Example

Suitable For PoE Powered Raspberry Pi Projects, Or Other Industrial Context



ΣΗΜΕΙΩΣΕΙΣ

  • For reference only, CM4, display, and cameras are NOT included.
