Pi Display QLED 9" HDMI 1280x720 IPS Capacitive Touchscreen USB

31-00024922
9HP-CAPQLED-B (EU)
ΚατασκευαστήςWaveshare Part Number9HP-CAPQLED-B (EU)
Διαθέσιμο
Αποστολή σε 24 ώρες
€14990
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€142.41
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

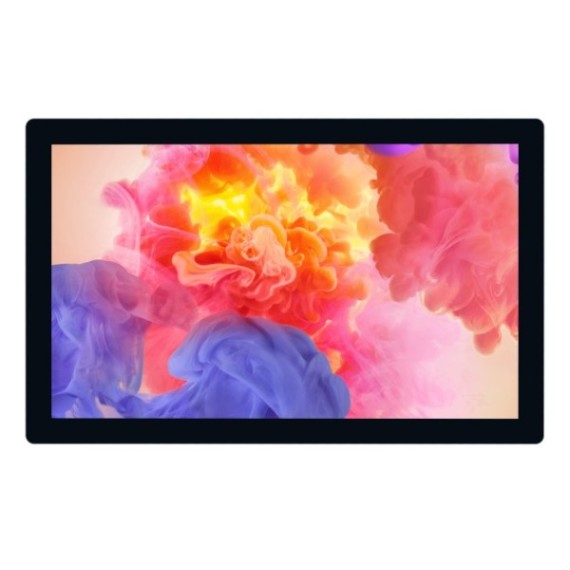

9″ QLED Touch Display

High Resolution | Multi-Point Touch | Full Color

QLED Panel

Excellent Display Performance With 178° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 100%, NTSC 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 9HP-CAPQLED-B ×1
  2. HDMI flat cable ~1m ×1
  3. HDMI to Micro HDMI adapter ×1
  4. USB-A to Micro-B cable ~1.2m ×1
  5. Button board cable ×1
  6. Button board ×1
  7. OPTIONS 5V 3A Power supply ×1
  8. Triangular stand ×1



Capacitive 10-Point Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel



Supports DDC/CI Brightness Adjustment

Interface Introduction

Device & System Support

Raspberry Pi

  • Supports Raspberry Pi OS, 10-point touch, driver free
  • Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports all versions of Raspberry Pi

Jetson Nano

  • Supports Ubuntu, single point touch, driver free

Core3566

  • Supports Linux, 10-point touch, driver free

PC

  • Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+





Working With Mini PC

  • Size: 9″
  • Resolution: 1280×720
  • Display Interface: HDMI
  • Display Panel: QLED Quantum Dot
  • Viewing Angle: 178°
  • Touch Type: Capacitive
  • Touch Points: 10-Point
  • Touch Port: USB
  • Touch Panel: Toughened Glass
  • OSD Menu: Brightness/Contrast
  • Brightness: Supports DCC/CI control
  • Brightness: 450cd/m²
  • Audio Output:
    • 3.5mm Jack
    • 4PIN Header



Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
Waveshare
Μικτό Βάρος
0.6kg
Μέγεθος Οθόνης
9 "
Ανάλυση
1280x720
Αναλογία Οθόνης
  • 16:9
Χρώμα
  • Colorful
Οθόνη Aφής
Capacitive
Διασύνδεση
  • HDMI
