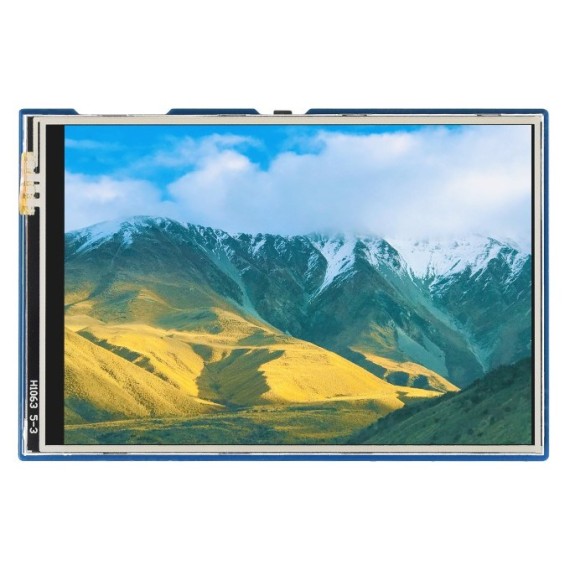

Pico Display 3.5" 480x320 IPS Resistive Touchscreen - SPI

31-00019907
Pico-ResTouch-LCD-3.5
ΚατασκευαστήςWAVESHARE Part NumberPico-ResTouch-LCD-3.5
Διαθέσιμο
Αποστολή σε 24 ώρες
2480
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
23.56
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
3.5" Touch Display Module For Pico
Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo



What's On Board

  1. Rapsberry Pi Pico header
  2. CAT6219
    LCD backlight power chip
  3. RT9193-33
    3.3V linear voltage regulator
  4. Pico reset button
  5. MicroSD card slot
  6. XPT2046
    resistive touch controller
  7. 74HC4040
    counter chip, for clock frequency division
  8. 74HC04D
    inverter chip
  9. 74HC4094
    serial data to parallel data converter




ΣΗΜΕΙΩΣΕΙΣ

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Pinout Definition

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Pico-ResTouch-LCD-2.8 x1
  2. Standoffs pack x1



  • Operating Voltage: 5V
  • Communication Interface: SPI
  • Display Panel: IPS
  • Driver: ILI9488
  • Touch Controller: XPT2046
  • Resolution: 480x320 pixels
  • Display Size: 73.44x48.96mm
  • Pixel Size: 0.153x0.153mm
  • Dimensions: 86x57.20mm
  • 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
  • MicroSD card slot for storing images and direct displaying them easily
  • Programmable backlight control, power saving
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Κατασκευαστής
WAVESHARE
Μικτό Βάρος
0.1kg
Μέγεθος Οθόνης
2.8 "
Ανάλυση
320x240
Αναλογία Οθόνης
  • 16:10
Χρώμα
  • Colorful
Οθόνη Aφής
Resistive
Διασύνδεση
  • SPI
Τύπος HAT
  • Display
