Raspberry Pi Pico Evaluation Kit - Type B

Raspberry Pi Pico Evaluation Kit  Type B Pico unit & Three basic expansion boards Comes With Demo Code For GPIO, PWM, I2C, SPI......
31-00019439
Gross Weight: 0.2kg
Company: Waveshare
Part Number: Raspberry-Pi-Pico-Kit-B
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Out of Stock
Product out of stock
No stock in retail store
49.90
Without VAT 40.24

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Raspberry Pi Pico Evaluation Kit Type B

Pico unit & Three basic expansion boards

Comes With Demo Code For GPIO, PWM, I2C, SPI...

Raspberry Pi Pico is Raspberry Pi's first microcontroller board, designed especially for physical computing. Microcontrollers are a different type of device than Single Board Computers (like the Raspberry Pi 4 and previous generations of Pi), they don't run an operating system and they are typically programmed to do just one task - though that task can be pretty intricate and exciting! They're perfect for experimenting with hardware and using as the brains of custom devices, machines and inventions.

It can be easily reprogrammed over USB from a Raspberry Pi or other computer using the C/C++ SDK or the official MicroPython port.

RP2040

Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. A wide range of flexible I/O options includes I2C, SPI, and - uniquely - Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Application Demo

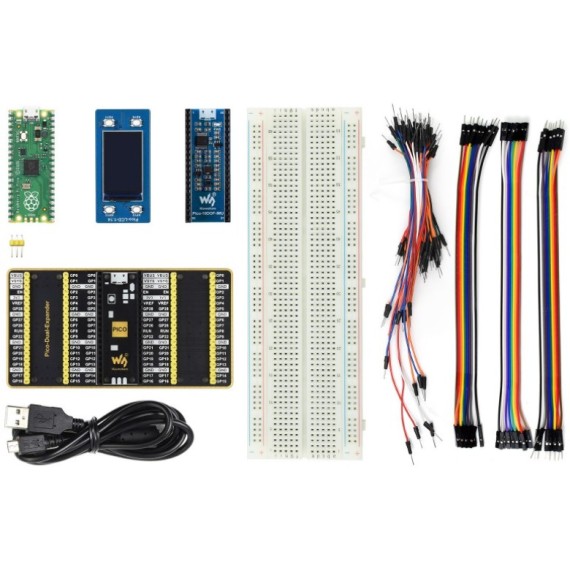

THE PACKAGE INCLUDES

  1. Raspberry Pi Pico with pre-soldered header x1
  2. Pico-LCD-1.14 x1
  3. Pico-10DOF-IMU x1
  4. Breadboard x1
  5. 1*3PIN yellow pin header x1
  6. Pico-Dual-Expander x1
  7. USB-A to micro-B cable x1
  8. Jumper wires x1

What's In The Kit

  • Raspberry Pi Pico With Pre-Soldered Header

    A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces
  • Pico-LCD-1.14

    A 1.14" LCD display module specialized for Raspberry Pi Pico, embedded ST7789 driver, using SPI communication bus.
  • 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, requires minimal IO pins
  • 4x user buttons for easy interacting
  • Pico-10DOF-IMU

    An IMU sensor expansion module specialized for Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure
  • Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
  • Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
  • Pico-Dual-Expander

    A GPIO expander specialized for Raspberry Pi Pico, providing two sets of standard Raspberry Pi Pico GPIO male headers
  • Two sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules
  • Clear pinout labels on the front side, easy to use
  • Immersion gold process, beautiful & practical, stunning aesthetic looking
  • 830 Quality Breadboard

    Easy prototyping by just inserting the components without soldering, standard 830 holes, suitable for building simple circuits, electric building block, electric DIY, and so on.
  • 630+200=830 holes, with red/blue wires
  • Dimensions: 165x55x10mm

SPECIFICATIONS

Breadboard Friendly :
Yes
Raspberry Compatible:
  • Pico

SPECIFICATIONS

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces, built on silicon designed at Raspberry Pi. Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Form factor: 51x21mm
