Precision Shaft - D6mm

14-00062021
Out of Stock
390
Our quantity discounts:
Quantity
10+
Price
3.12
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

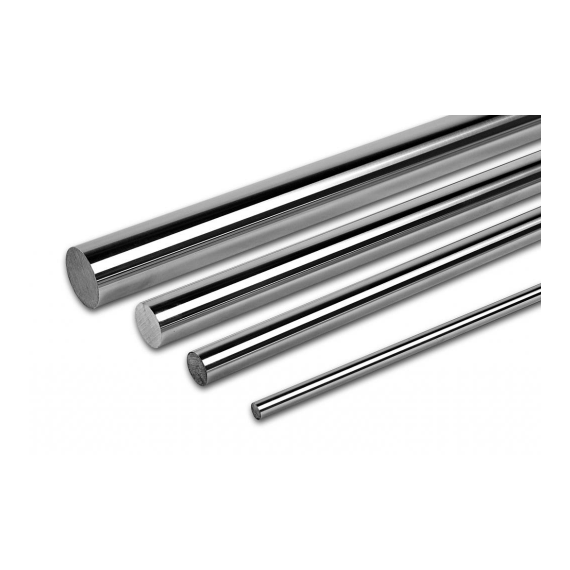

This precision shaft is chrome plated and case hardened it's suitable for use with linear support blocks and closed type slide units in linear motion applications. These are made from high quality carbon steel and induction hardened to HRC 60-62.

  • Diameter: 6mm
  • Length: 300mm
  • Linear shaft material: Gcr15 steel or 45#steel
  • Hardness: HRC60-62
  • Tolerance: g6
  • Roundness: Within 3μm
  • Finish: Chrome plated
  • Thickness of Chrome plated:1-2μm
Company
Oem
Gross Weight
0.07kg
Shaft Diameter
6 mm
Shaft Length
300 mm
Type
Round Shafting
