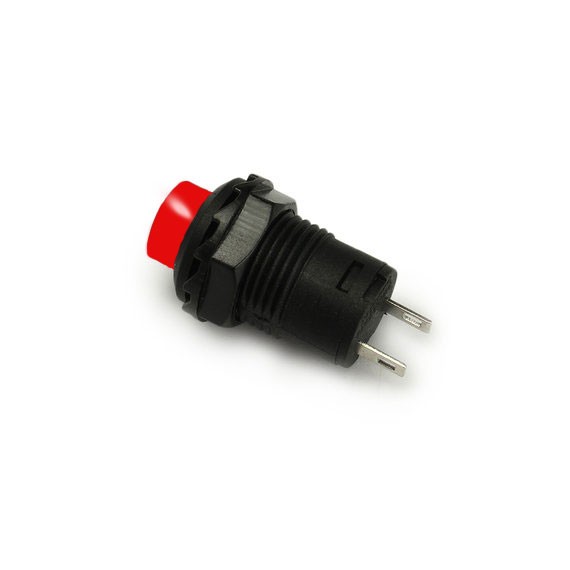

Push Button Latching - 12.5mm Red

by OEM
29-00022820
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
0.50
Without VAT 0.40
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.4000 0.3499 0.3000
WISHLIST COMPARE

SPECIFICATIONS

Breadboard Friendly :
Not reccomented
Contacts configuration :
SPST-NO
Switching method :
OFF-ON
DC or AC Rating:
1A / 250VAC
Leads for:
Soldering

EXTRA SPECIFICATIONS

  • Stable positions number: 2-position
  • Contacts configuration: SPST-NO
  • AC contacts rating (at resistance load): 1 A / 250 VAC
  • Actuator colour: Red
  • Leads for soldering
  • Operating temperature: -10...85°C
  • Switching method: OFF-ON
  • Max. contact resistance: 20mΩ
  • Mounting: Panel mounting
  • Electrical life: 50000cycles
  • Body colour: Black
  • Sealing: IP40

Dimensions

  • Mounting hole diameter: Ø12.5mm
