Arcade Push Button - White 33mm

22-00019340
In Stock
Ships in 24 Hours
160
Our quantity discounts:
Quantity
10+
100+
Price
1.28
1.12
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

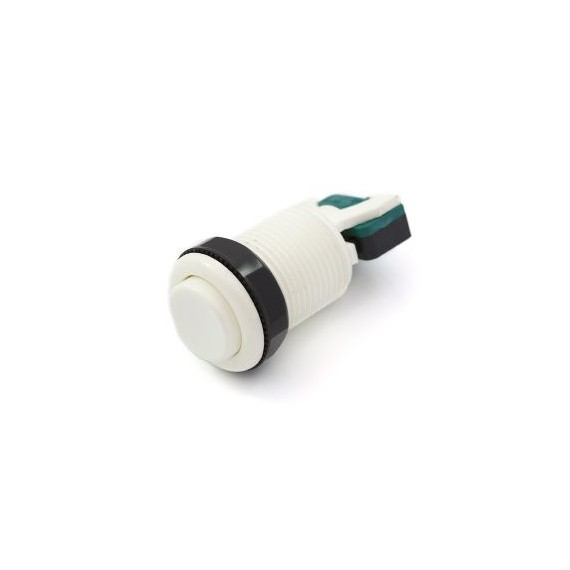

This is a 33mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel.

NOTES

  • Each arcade push button will require 1x 4.8mm crimped wire for ground connection and 1x 4.8mm crimped wire for signal connection.
  • Concave plunger design
  • Durable nylon material
  • Microswitch: max 3A @ 120 VAC
  • Microswitch reliability tested to 10,000,000 cycles
  • Includes 3 terminal microswitch (NO/NC)
  • Bezel diameter: 32.8mm
  • Button diameter: 22.3mm
  • Overall height: 65mm
  • Mounting hole: 1 1/8th inch paddle bit (1.125" / 27.8mm)
  • Net weight: 25g
Company
Oem
Gross Weight
0.03kg
Accessory Type
Button
Bezel Diameter
33 mm
Button Color
White
Button Type
  • Classic
Contacts configuration
  • SPDT
Switching method
ON-(ON)
DC or AC Rating
3A / 120VAC
Leads for
Flat Terminal
