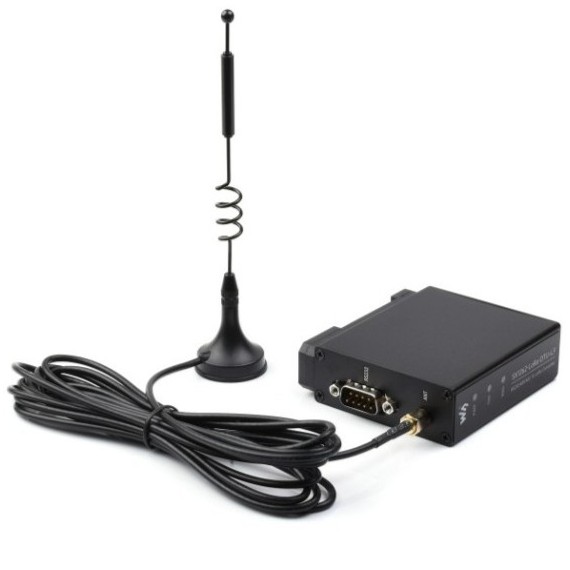

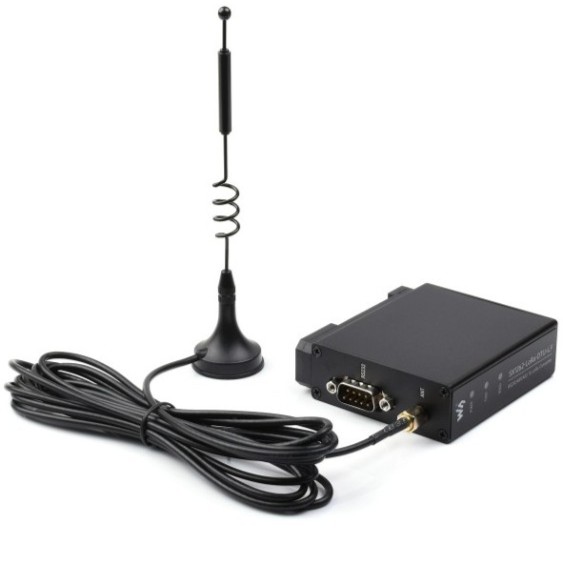

Rail-mount LoRa SX1262-LF RS232/RS485/RS422 to LoRa

SKU:

31-00023797

Part Number: SX1262-LoRa-DTU-LF-Kit (EU)

CompanyWaveshare Part NumberSX1262-LoRa-DTU-LF-Kit (EU)

Out of Stock

€32⁴⁰

Our quantity discounts:

Quantity

10+

Price

€29.16

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

Rail-Mount SX1262 LoRa Data Transfer Unit, RS232/RS485/RS422 To LoRa, Suitable For Sub-GHz Band

Rail-Mount SX1262 LoRa DTU
RS232 / RS485 / RS422 To LoRa

Suitable for data acquisition in industry and agriculture

Version Options


SX1262-LoRa-DTU-HF HF version is 850 ~ 930MHz frequency Applicable to Europe, North America and Oceania	SX1262-LoRa-DTU-LF LF version is 410 ~ 510MHz frequency Applicable to Europe, Asia

SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485 and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoints, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industrial standard or non-standard user protocol

Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication
Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power
Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions
Supports LBT sending, RSSI output, AT command configuration
AES communication to ensure data transmission security
Supports multi-level relay networking to increase the wireless communication distance
Supports host configuration and firmware upgrade (support firmware customization for batch order)
Adopts high-quality components such as TCXO to ensure stable operation under harsh working conditions
Comes with development resources and manual

Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling

Interface Introduction

Primary Function

Support RS232 / RS485 / RS422 To LoRa

*Note: It does not support RS232, RS485, RS422 to LoRa at the same time, and RS232, RS485, RS422 cannot be converted to each other at the same DTU.

Communication Interface
- Interface:
  - Screw terminals: RS485 × 1, RS422 × 1
  - DB9 male connector: RS232 × 1
  - SMA-KE female connector: 6dBi omni-directional antenna × 1
- RS485: Anti-surge, overcurrent protection (reserved 120R balanced resistor header)
- RS232: TVS diode, anti-surge and ESD protection
- RS422: Anti-surge, overcurrent protection (reserved 120R balanced resistor header)
Wireless Parameters
- Frequency Band: Sub-GHz (410~510MHz, 850~930MHz)
- Signal Modulation: LoRa
- Encryption Type: AES
- Emit Power: +22dBm Max
- Reception Sensitivity: -148dBm
Serial Parameters
- Baud Rate: 1200 ~ 115200bps
- Parity Bit: None, Odd, Even
- Data Bit: 8 ~ 9 bits
- Flow Control: N/A
Enviromental Requirement
- Operating Temperature: 0 ~ 85℃
- Humidity Range: 5% ~ 95% relative humidity
Others
- Power Supply: Screw terminals 6 ~ 28V or DC 12V, overcurrent, overvoltage and reverse-proof
- Case: Aluminum alloy
- Dimensions: 77x24x64.2mm

Rail-Mount LoRa Data Transfer Unit
Industrial Rail-Mount Design, Small In Size, Easy To Install, And Cost-Effective

The LoRa Spread Spectrum Technology
Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

Multiple Communication Methods
Can Be Set Via Software

Relay Networking
The Radio Station Can Realize Multi-Level Relay Networking, Suitable For Ultra Long-Range Distance Or Complex Environment Networking Communication, Allows Multi Networking On The Same Region

High-Quality Components
For Stable Performance Of Communication Module


Original chip SX1262	Industrial grade crystal oscillator -40 ~ 85℃

AT Command Mode
Users Can Query The Current Status Of The Module Or Set Parameters By Sending AT Commands

AES Communication
The Secret Key Is Writable But Unreadable, The Devices With The Encrypted Transmission Enabled And The Same Key Can Communicate With Each Other Normally For Greater Security

Listen Before Talk (LBT)
The module will actively monitor the environmental noise of the channel before sending. If the noise exceeds the threshold, the sending will be delayed. This function can improve the communication success rate of the module in harsh environments, suitable for networking transmission and anti-collision processing

Receive Signal Strength Indication (RSSI)
Supports serial port output of data packet signal strength, can be used to evaluate signal quality, improve communication network, and measure distance. Supports serial port output of environmental noise signal strength, can be used to manually realize LBT function.

Temperature Compensated Crystal Oscillator

Ensure The Long Time Working Of The Module Without Frequency Shift At The High
And Low Temperature Environment Of Industry

Multiple Protection, Safe And Stable
Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance
