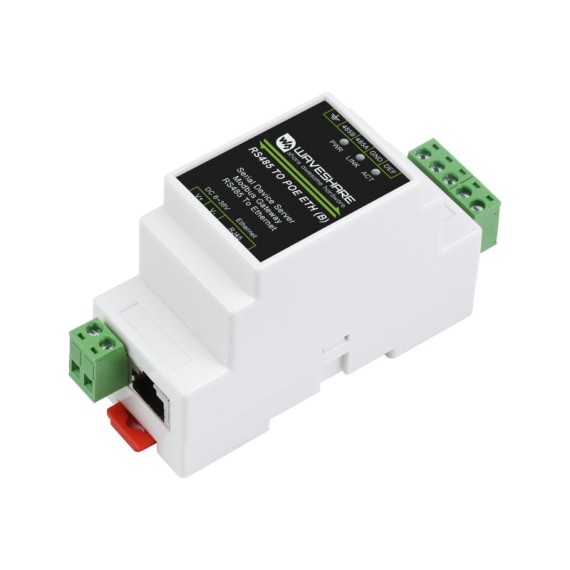

Rail-Μount Serial Server RS485 to Ethernet (with POE function)

Κωδικός:

31-00023273

Part Number: RS485 TO POE ETH (B)

ΚατασκευαστήςWaveshare Part NumberRS485 TO POE ETH (B)

Διαθέσιμο

Αποστολή σε 24 ώρες

€29⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€26.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

RS485 To RJ45 Ethernet Module with POE

Industrial Rail-mount RS485 serial server, RS485 to RJ45 Ethernet, TCP/IP to serial, rail-mount support, with POE function

The RS485 TO POE ETH (B) is the hardware upgrade version that supports PoE Ethernet port power supply, with power and signal isolation protection, which is safer for industrial applications.

Primary Function

Bi-Directional Transparent Data Transmission Between RS485 And Ethernet

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Modbus Gateway Support

Suitable For Modbus Gridding Upgrade, Can Be Used With 3D Configuration Software

Interface Introduction

NOTES

Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply

Outline
- Product Type: Serial server, Modbus Gateway, MQTT Gateway
- Basic Function: Bi-directional transparent data transmission between RS485 and Ethernet
- Communication interface: RS485 port x 1, Ethernet port x 1
- Power supply: 6 ~ 36V DC screw terminal, or PoE port
- Isolation Protection: Power isolation, Signal isolation
- Dimensions: 87×36×59 mm
- Weight: 0.077 kg
Communication
- Ethernet: PoE network port, support IEEE 802.3af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
- Serial port: Isolated RS485
Serial Specification
- Baudrate: 300 ~ 115200 bps
- Parity bit: none, odd, even, mark, space
- Data bit: 5 ~ 9 bits
- Flow control: N/A
Software
- Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration: host, web browser, device management functions library
- Communication method: TCP/IP direct communication, VCOM
- Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Environment Requirement
- Operating temperature: -40℃ ~ 85℃
- Storage temperature: -45℃ ~ 100℃
- Humidity range: 5% ~ 95% relative humidity

In the Box

RS485 TO POE ETH Module x1

Multi Communication Modes

Supports TCP Server / TCP Client / UDP Mode / UDP Multicast

MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively, No More Crosstalk Issue While Communicating With Multi Network Devices
