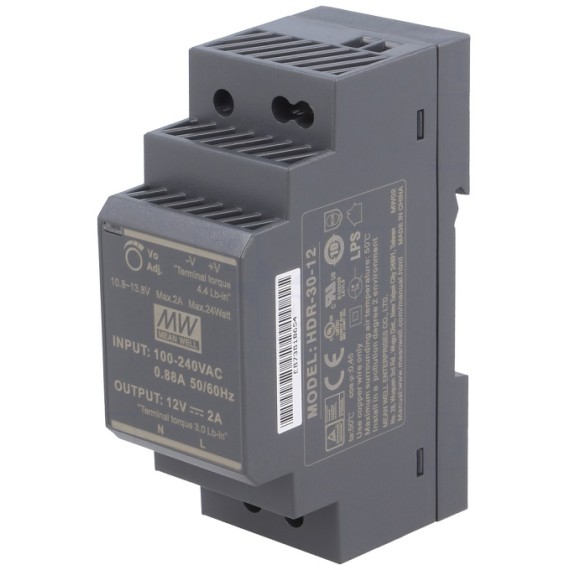

Din Power Supply 12V 2A MeanWell - HDR-30-12

48-00015161
Gross Weight: 0.14kg
Company: MeanWell
Part Number: HDR-30-12
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
18.60
Without VAT 15.00
+
WISHLIST COMPARE

SPECIFICATIONS

Power:
24Watt
Output Voltage:
12V DC
Output Current:
2Amp
Supply Voltage:
  • 120...370V DC
  • 85...264V AC
Protection:
  • overload
  • short-circuit
  • voltage growth
Number of Outputs:
1
Mounting:
DIN
Efficiency:
88%
Power Supply Dimensions:
35 x 90 x 54.5mm
Output connector:
  • Screw Terminals

SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Power: 24W
  • Output voltage: 12V DC, 10.8...13.8V DC
  • Output current: 2A
  • Supply voltage: 85...264V AC, 120...370V DC
  • Electrical connection: Terminal block
  • Mounting: DIN
  • Number of outputs: 1
  • Operating temperature: -30...70°C
  • Protection: Overload, voltage growth, short-circuit
  • Efficiency: 88%
  • Series: HDR-30

Διαστάσεις

  • Body: 35 x 90 x 54.5mm
  • Weight: 120g
