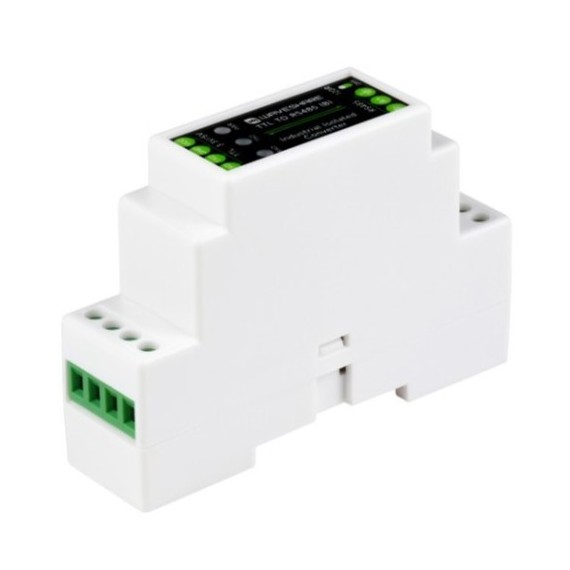

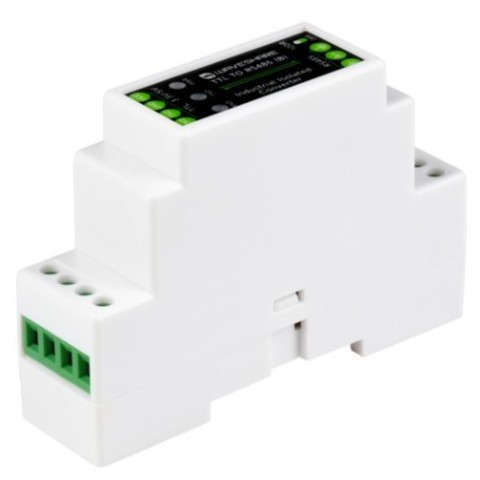

Rail-Μount TTL to RS485 Galvanic Isolated Converter

Industrial TTL to RS485 Converter

Κωδικός:

31-00023778

Part Number: TTL TO RS485 (B)

MountRail-mount ProtectionSignal isolation, Power isolation ΔιασύνδεσηTTL to RS485 ΚατασκευαστήςWaveshare Part NumberTTL TO RS485 (B)

Διαθέσιμο

Αποστολή σε 24 ώρες

€14⁸⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€13.32

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Rail-Mount TTL To RS485 Galvanic Isolated Converter, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection

Rail-Mount TTL To RS485 (B)
Galvanic isolated Serial Port Converter

Compatible with TTL/RS485 standard, converting the TTL signal into differential RS485 signal, support half-duplex communication
Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
Onboard RS485 output terminal 120R resistor, enabled/disabled via switch
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Primary Function
Converting The TTL Signal Into Balanced Differential RS485 Signal
For Interface Converting, Expanding Nodes And Long-Distance Communication

Rail-Mount Support
Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Interface Introduction

TOP SIDE SCREW TERMINAL		BOTTOM SIDE SCREW TERMINAL
VCC	Power Input DC 3.3V~5V power supply	DIP SWITCH	120R enable switch
GND	Ground	SGND	RS485 signal ground
TXD	TTL transmit data pin	A+	RS485 differential signal positive
RXD	TTL receive data pin	B-	RS485 differential signal negative

Application Examples
The TTL To RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require TTL To RS485 conversion such as Industrial Automation and IoT.

Product Type: Galvanic isolated TTL To RS485 converter
Power Supply Interface:
- Power supply: 3.3V ~ 5V
- Protection: Over-voltage, reverse-proof
Device Port: TTL/RS485 standard compatible
TTL:
- Connector: Screw terminal
- Transmission distance: About 10m
- Transmission mode: Point-to-point
RS485:
- Connector: Screw terminal
- Protection: 600W Lightningproof and surge-suppress, 15KV ESD protection
- Terminal resistor: 120R, enabled/disabled via switch
- Transmission Distance: About 1.2km
- Transmission Mode: Point-to-multipoint (up to to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Appearance
- Case: Rail-mount ABS case, suitable for 35mm DIN rail
- Dimensions: 91.6x58.7x23.3mm

Communication Connection Diagram
TTL convert to RS485, point to point, half-duplex communication, suitable for interface conversion

TTL convert to RS485, point-to-multipoint, half-duplex communication, suitable for expanding nodes

Two groups TTL To RS485 conversion, point-to-point, half-duplex communication, suitable for extending the communication distance of TTL

Multiple Protection, Safe And Stable
Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance
