Αρχική Σελίδα/Ρομποτική/Raspberry Pi/Raspberry Pi Κουτιά/Raspberry Pi Compute Module 5 IO Case

Raspberry Pi Compute Module 5 IO Case, 2 image

Raspberry Pi Compute Module 5 IO Case

Κωδικός:

06-00020483

Part Number: SC1753

ΚατασκευαστήςRaspberry Pi Part NumberSC1753

Διαθέσιμο

Αποστολή σε 24 ώρες

€21²⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Raspberry Pi Compute Module 5 IO Case, 5 image

Raspberry Pi CM5 - 4GB RAM (-, NO)

€72.10

Raspberry Pi Compute Module 5 IO Case

€21.20

Raspberry Pi Compute Module 5 Passive Cooler

€7.40

Raspberry Pi Compute Module 5 IO Case, 7 image

Raspberry Pi CM5 IO Expansion Board

€26.40

Raspberry Pi 5 27W USB-C Power Supply - Black

€14.80

Τιμή για όλα μαζί

Κερδίζετε έκπτωση: €0.00

€141.90 €141.90

Περιγραφή
Χαρακτηριστικά

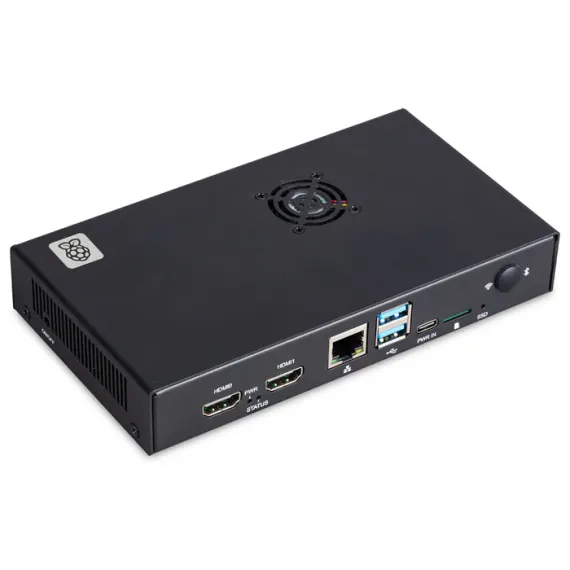

The Raspberry Pi IO Case for Raspberry Pi Compute Module 5 is a high-quality two-piece metal enclosure for Compute Module 5 and the Compute Module 5 IO Board. It provides space for accessories connected to the IO Board, such as an M.2 SSD or a PoE+ HAT+.

The IO Case also includes slots to enable the connection of CSI-2 cameras or DSI displays and includes a built-in controllable fan to support thermal regulation for higher-power applications. Cut-outs in the side of the case allow access to HDMI, Ethernet, USB-A, and USB-C (power in) connectors and to the SD card slot. A mounting hole is provided for an external wireless antenna.

The optional Raspberry Pi Compute Module 5 Passive Cooler (GRobotronics SKU: 06-00020484) can also fit inside the case (the IO case fan needs to be removed first).

Technical data

Case
- 170mm × 94mm × 28mm
- Approx 350g weight
- Sheet metal construction
DC brushless fan
- 5V DC (3.5 – 5.5V) supplied via a four-pin fan header on a carrier board
- ≥ 3.5V start voltage
- 0.85W power consumption
- 0.18 ± 0.02A rated current
- 8000 RPM ± 15% (at 25℃, after 3 – 5 minutes rotating) maximum fan speed
- 2.46 CFM maximum airflow
- 21.7 dB noise level
- 150 mm cable length
