Raspberry Pi HQ Camera Lens - 16mm Telephoto

Κωδικός:

06-00018040

Part Number: PT3611614M10MP

ΚατασκευαστήςRaspberry Pi Part NumberPT3611614M10MP

Διαθέσιμο

Αποστολή σε 24 ώρες

€62⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The new High Quality Camera from Raspberry Pi is compatible with C or CS-mount lenses. We have two options available - 6mm 3MP Wide Angle and 16mm 10MP Telephoto.

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area (no not use the lens adapter with the 6mm lens or everything will be blurry!)

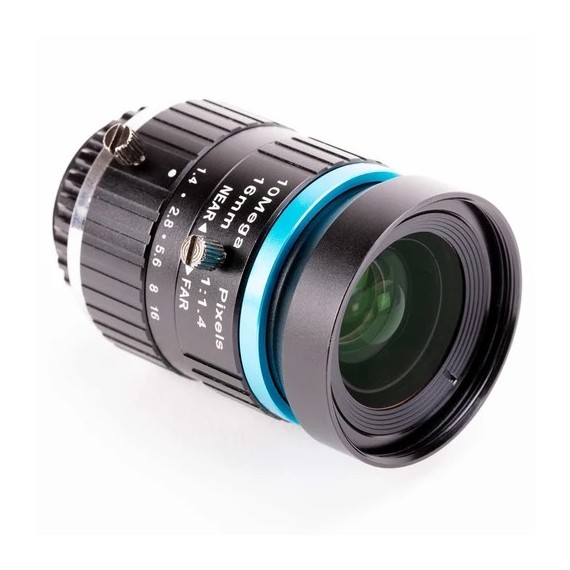

The 16mm 10MP Telephoto lens offers a high-level of zoom, for targeting your camera on specific subjects.

The lenses screw directly on to the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumb screws) for greater flexibility and image refinement.

Covers for the front and rear of the lenses are included and come pre-fitted.

ΣΗΜΕΙΩΣΕΙΣ

Raspberry Pi High Quality Camera not included - available separately here

Image format: 1"
Focal length: 16mm
Resolution: 10 Megapixel
Aperture: F1.4 to F16
Mount: C
Field Angle:
- 1" 44.6°x33.6°
- 2/3" 30.0°x23.2°
- 1/1.8” 24.7°x18.6°
- 1/2" 21.8°x16.4°

Distortion:
- 1" (-0.7%)
- 1/2" (-0.5%)
- 1/3" (-0.15%)
M.O.D: 0.2m
Back focal length: 17.53mm
Optical length: 67.53mm
Dimensions: 39x50mm
Weight: 133.7g
