Real Time Clock Module with EEPROM

by OEM
This is the Real Time Clock (RTC) Module with extra EEPROM, this little breakout that uses the DS1307 to keep track of the current year, month, day as well...
19-00010525
Volumetric weight: 0.01kgs
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
1.90
Without VAT 1.53
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 1.52 1.33 1.14
WISHLIST COMPARE

DESCRIPTION

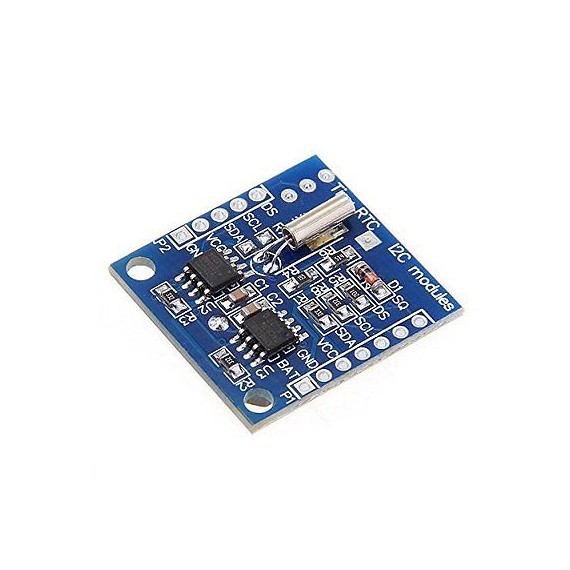

This is the Real Time Clock (RTC) Module with extra EEPROM, this little breakout that uses the DS1307 to keep track of the current year, month, day as well as the current time. The module comes fully assembled. The DS1307 RTC is accessed via the I2C protocol.

Note: Battery not included

Specifications:

  • Memory storage: 24C32 32K I2C EEPROM
  • I2C protocol
  • With full BCD clock calendar chip of 56byte non-volatile RAM
  • The chip can provide second, minute, hour etc information.
  • AM/PM mark, for working 24-hour or 12-hour
  • Built-in power sensor circuit in the chip, with brownout detection and battery switch function

Documents:









SPECIFICATIONS

Connection:
  • I2C
