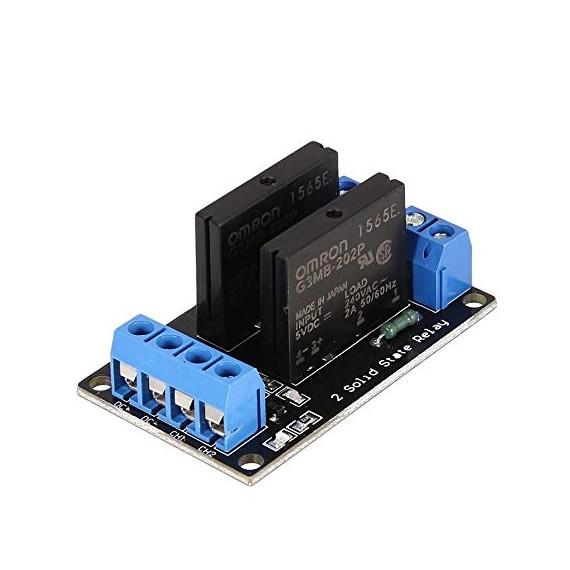

Relay Module SSR 5V 2A - 2 Channel

by OEM
This is a 5V 1-Channel SSR interface board.  Be able to control various appliances, and other equipments with large current.  Led indicator for each...
19-00010996
Company: OEM
Part Number: NA427
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
4.80
Without VAT 3.87
+
WISHLIST COMPARE

DESCRIPTION

This is a 5V 1-Channel SSR interface board. Be able to control various appliances, and other equipments with large current.

Led indicator for each relay.

Input control signal voltage is 0V - 0.5V Low stage (SSR is OFF), 0.5V - 2.5V (unknown state), 2.5V - 20V High state (SSR is ON); SSR Output (each channel);

Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

Low Level Trigger 1-channel 5v Solid State Relay Module Board SSR



Application:

  • Supports all MCU control.
  • The industrial field.
  • PLC control.
  • Smart home control.



NOTES

  • Power must be DC voltage and need to be consistent with the voltage relay.

SPECIFICATIONS

Rated Coil Voltage:
5VDC
Contact Current Max. :
2A
Type / Contacts Config.:
  • SSR
  • Module

EXTRA SPECIFICATIONS

  • Input Power Supply: 5V DC
  • Load Voltage: AC240V 2A
  • Maximum operating current: 160mA
  • Trigger mode: Low level
  • Input control signal voltage:
    • (0-2.5V low state relay OFF)
    • (3.3-5V state high relay ON)
  • Blue KF301 terminal connection control line is more convenient.
  • Module interface:
    • DC+: positive power supply (by relay voltage power supply)
    • DC-: connect power negative
    • CH1: Relay Module signal triggering end (Low level trigger effective)
    • CH2: Relay Module signal triggering end (Low level trigger effective)
