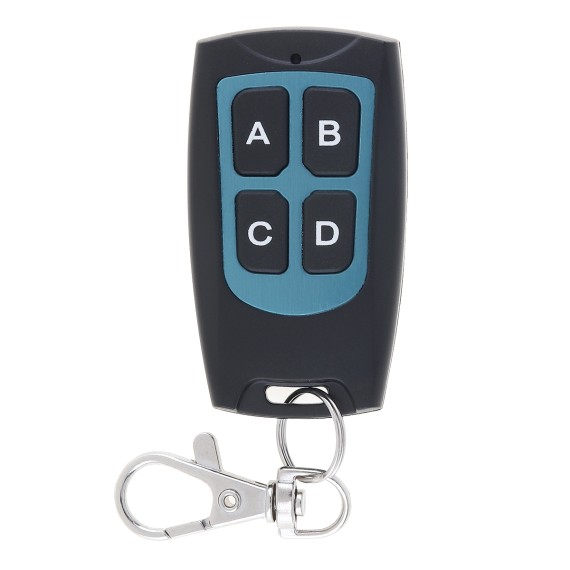

RF Remote Control 433MHz - 4-Button ABCD

από OEM
The remote controller is mainly used for data reception and signal control. It is available For electric doors, garage doors, rolling shutter door/window,...
19-00012898
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 3.84 3.36

ΠΕΡΙΓΡΑΦΗ

The remote controller is mainly used for data reception and signal control. It is available For electric doors, garage doors, rolling shutter door/window, remote control switches, remote control Door locks, LED lighting, industrial automatic control, receiving controllers Wireless anti-theft alarms, etc. Its internal circuit design is advanced and adopts a fixed coding chip. The RF circuit adopts a sound meter to stabilize the frequency, which has the characteristics of high stability and low power consumption, and can be used with a variety of RF modules of our company.

ΣΗΜΕΙΩΣΕΙΣ

  • Requires one CR2016 coin cell (not included).

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Πρωτόκολλο:
  • RF
Μικτό Βάρος:
0.003kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Working voltage: 3V (cr2016)
  • Working frequency: 433.92mhz
  • Center frequency deviation: ± 75khz
  • Standby current: ≤0.1ua
  • Working current:≤ 22 Ma
  • Modulation mode: ask
  • Transmission rate: ≤5Kbps
  • Output power:≤ 12dbm
  • RF circuit structure: sound meter frequency stabilization
  • Code format: Manchester code
  • Temperature range: -20 to 60
  • Product size: 57x32x11.5mm
  • Product weight: 22g
