RF Link Transmitter and Receiver 4 Channel - 433MHz

by OEM
These wireless RF modules has 4 channel and work at 433MHz. They can easily fit into a breadboard and work well with microcontrollers to create a very...
19-00010475
Gross Weight: 0.01kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
4.20
Without VAT 3.39
+
WISHLIST COMPARE

DESCRIPTION

These wireless RF modules has 4 channel and work at 433MHz. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireless data link.

SPECIFICATIONS

  • Transmitter module:
    • Transmitting power: 11dbm
    • Emission current: 10mA
    • Rate of fire: maximum 10KB / S
    • Operating Voltage: DC 3V-24V
    • Encoding: EV1527 1527 Learning code
    • Each module has a unique ID address code
    • All modules K1-K4 four key code is the same
  • Receiver module:
    • Working Voltage: DC3.3~5V
    • Quiescent Current: ≤5mA
    • Output current: 10mA
    • Working Frequency: 433MHz
    • Receive Sensitivity: -108dB
    • Working Temperature: -25~75
    • Working mode: Momentary Mode , self-locking (Toggle-Mode of the 4 Channels) , interlocking
    • The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons

FEATURES

  • Remote control switch
  • Receiver module
  • Motorcycles, automobile anti-theft products
  • Home security products
  • Electric doors, shutter doors, windows
  • Remote control socket, remote control LED, remote audio
  • Remote control electric doors, garage door remote control

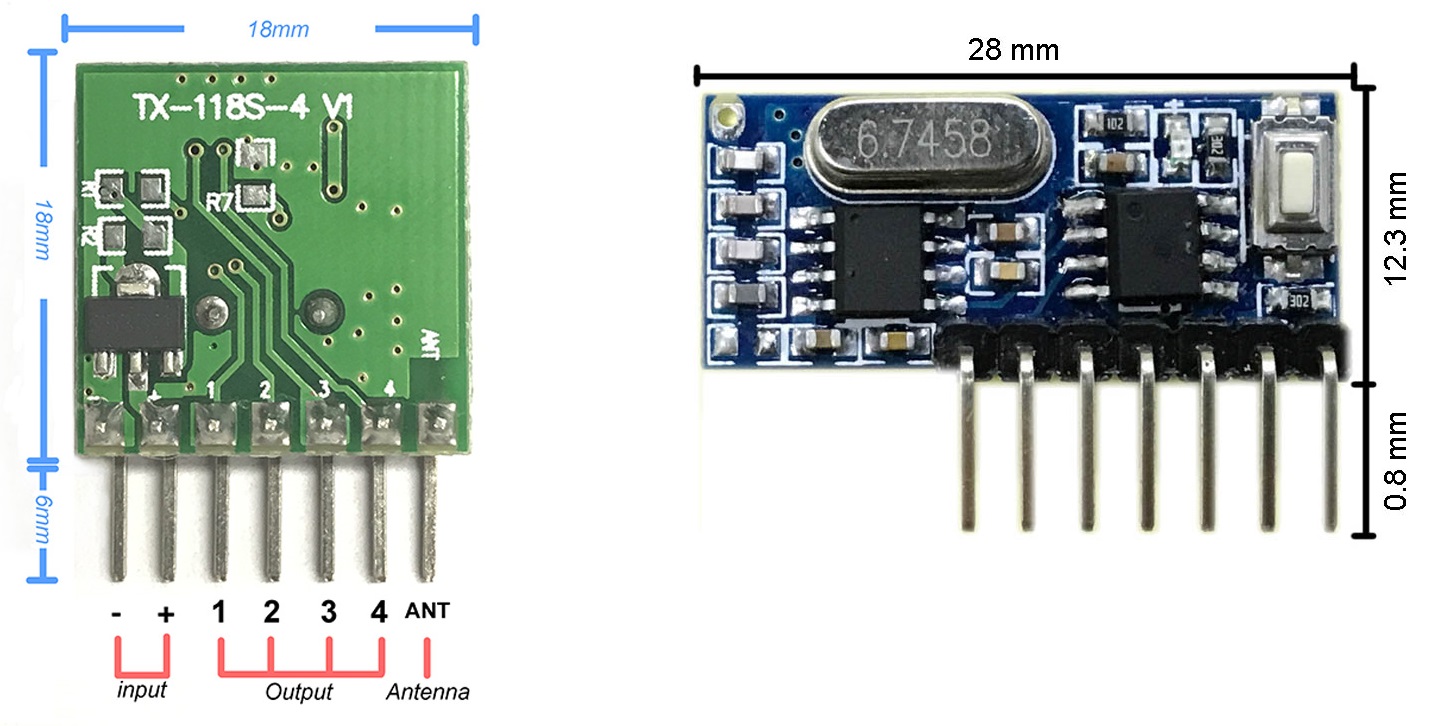

Διαστάσεις

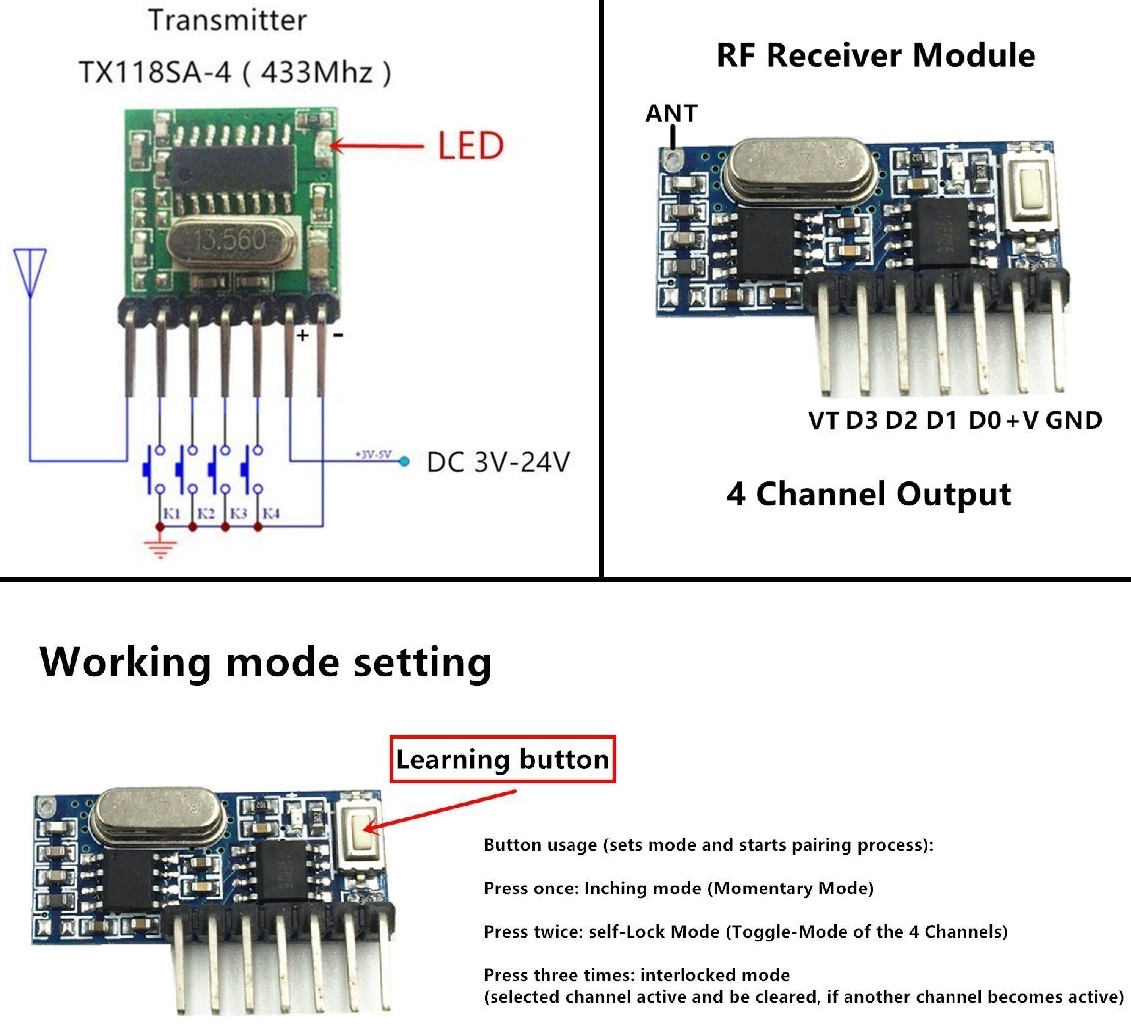

Συνδεσμολογία

Το κιτ περιέχει

  • 1x Receiver module (RX480R_4CH V4)
  • 1x Transmitting module (TX-118S-4 V1)
