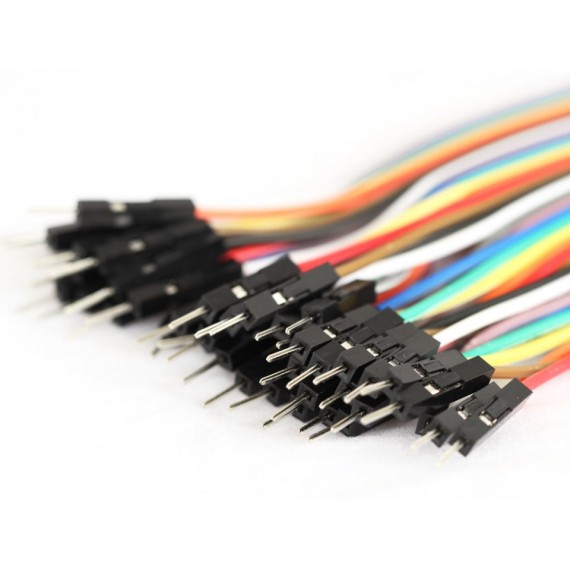

Ribbon 40wire 20cm - Male to Male

11-00015556
In Stock
Ships in 24 Hours
360
Our quantity discounts:
Quantity
10+
100+
Price
2.88
2.52
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

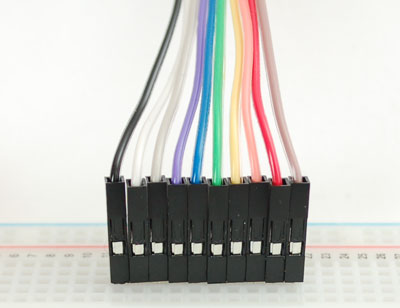

These jumper wires are just what you need for prototyping on a PCB. At either end there are 40 individual female to male connectors whilst in the middle, the wires are joined in a ribbon.

Simply pull the ribbon apart and split off what you need. For instance if you need a 4 pin cable, simply pull 4 cables off the ribbon.
  • Number of conductors: 40
  • Conductor Pitch: 1.4mm
  • Conductor Material: Copper
  • Insulation Material: PVC
  • Conductor Gauge: 24 AWG (12 x 0.15mm)
  • Ribbon Width: 56mm
  • Ribbon Length: 200mm
  • Connector Type: Dupont 1P male
  • Voltage Rating: 300V
  • Capacitance core/core: 50 pF/m
  • Current rating at 25°C: 2A
  • Maximum Operating Temperature: 70°C
  • Maximum Conductor Resistance: 87.2 Ω/km
  • Minimum Insulation Resistance: 90 MΩ/km
Company
Oem
Gross Weight
0.04kg
Cable Architecture
  • Αρσενικό σε Αρσενικό
Terminal Type
  • Dupont / Header
