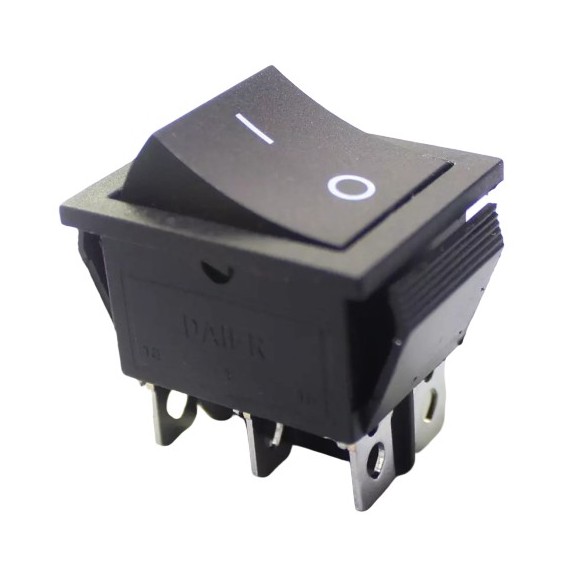

Rocker Switch ON-ON DPDT 15A/250VAC - Medium Black

by OEM
KCD2-202 Rocker Switch T120 55 offer a high switching current in a compact design. It is a snap-in mounted rocker switch with a high mechanical life in a...
29-00015505
Gross Weight: 0kg
Company: OEM
Part Number: KCD2-202-C3-BB
Made in: China
Out of Stock
Product out of stock
Low stock in store
0.80
Without VAT 0.65

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

KCD2-202 Rocker Switch T120 55 offer a high switching current in a compact design.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

SPECIFICATIONS

Contacts configuration :
  • DPDT
Switching method :
ON-ON
DC or AC Rating:
15A / 250VAC
Leads for:
Flat Terminal

SPECIFICATIONS

  • Housing: Nylon 66
  • Button: Nylon 66
  • Terminal: Brass with sliver plated
  • Button color: Standard Black,red is avaliable
  • Rating: 20A 125VAC/15A 250VAC
  • Housing color: Standard black
  • Contact Configuration: DPDT
  • Switch Operation: ON-ON
  • Contact Resistance: 35mΩ max
  • Operating Temperature: -25℃~+85℃
  • Insulation Resistance: 100mΩ min (500VDC)
  • Electrical Life: ≥ 10,000 Cycles
  • Dielectric strength: 1500VAC 1 minute
  • Mechanical Life: ≥ 100,000 Cycles
  • Certification: CE, CQC, TUV, SGS
