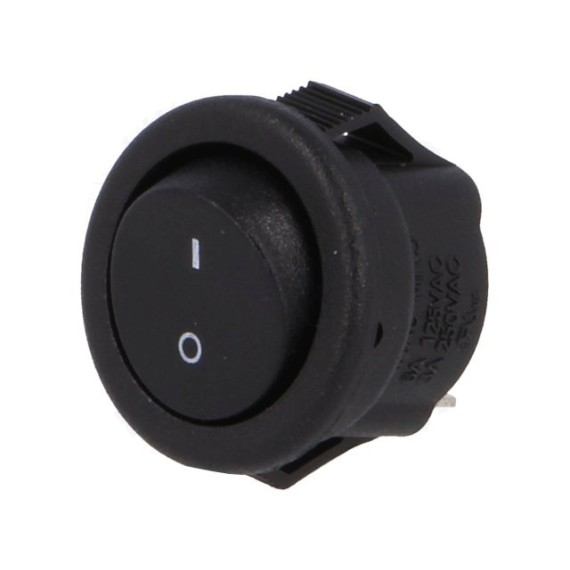

Rocker Switch SPST 3A/250VAC Round Mini

by OEM
29-00015500
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
0.4000
Without VAT 0.32
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.3200 0.2800 0.2401
WISHLIST COMPARE

SPECIFICATIONS

Breadboard Friendly :
Not reccomented
Contacts configuration :
SPST-NO
Switching method :
ON-OFF
DC or AC Rating:
3A / 250VAC
Leads for:
Flat Terminal

EXTRA SPECIFICATIONS

  • Stable positions number: 2-position
  • Contacts configuration: SPST
  • Switching method: ON-OFF
  • AC contacts rating (at resistance load): 3 A / 250 VAC
  • Key button colour: Black
  • Max. contact resistance: 50mΩ
  • Operating temperature: 0...100°C
  • Leads for soldering
  • Electrical life: 10000cycles
  • Number of positions: 2
  • Button marking: --O
  • Body material: polyamide
  • Terminals plating: Silver plated
  • Contact material: Silver alloy
  • Terminals material: Copper alloy

Dimensions

  • Body: Ø14.3 x 12mm
  • Mounting hole diameter: Ø15mm
  • Height above panel: 4mm
