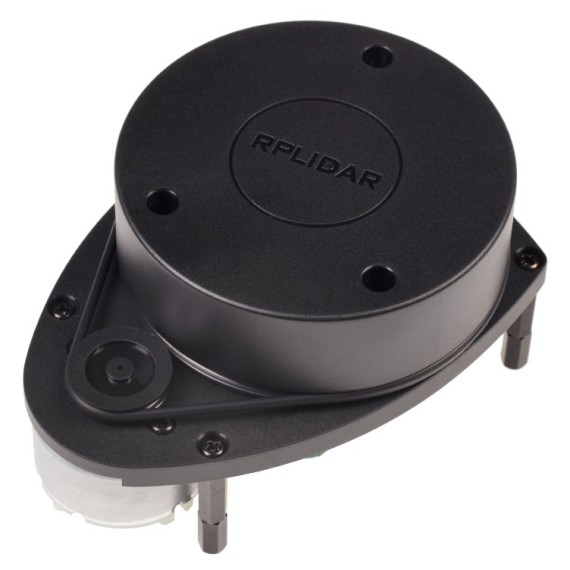

RPLiDAR A1M8-R6 - 360° Laser Scanner Kit - 12M Range

by SLAMTEC
RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range....
32-00019902
Company: SLAMTEC
Part Number: A1M8-R6
Made in: China
Out of Stock
Product out of stock
No stock in retail store
129.90
Without VAT 104.76

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum.

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.

Application Scenarios

  • Home service /cleaning robot navigation and localization
  • General robot navigation and localization
  • Smart toy’s localization and obstacle avoidance
  • Environment scanning and 3D re-modeling
  • General simultaneous localization and mapping (SLAM)



THE PACKAGE INCLUDES

  • 1x RPLIDAR A1(PWM motor driver embedded)
  • 1x USB Adapter
  • 1x RPLIDAR A1 communication cable

SPECIFICATIONS

Sensor Type:
  • Proximity
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
600mA
Interface:
  • Digital
Communication Protocol:
  • UART
  • USB

SPECIFICATIONS

  • Distance Range: 0.15 - 6m, White objects
  • Angular Range: 0-360 Degree
  • Distance Resolution: <0.5mm
  • Angular Resolution: ≤1Degree
  • Sample Duration: 0.5ms
  • Sample Frequency: 2000~2010Hz
  • Scan Rate: 1~10Hz
    • Typical 5.5Hz
  • Dimensions: 98.5x70x60mm
  • Weight: 170g

FEATURES

  • Measures distance data in more than 8000 times/s
  • 360 Degree Omnidirectional Laser Range Scanning
  • 8000 times sample rate, the highest in the current economical LIDAR industry
  • OPTMAG Original Design, prolong the life-span
  • Configurable Scan Rate from 2-10Hz
  • Ideal for Robot Navigation and Localization
  • Plug and Play
