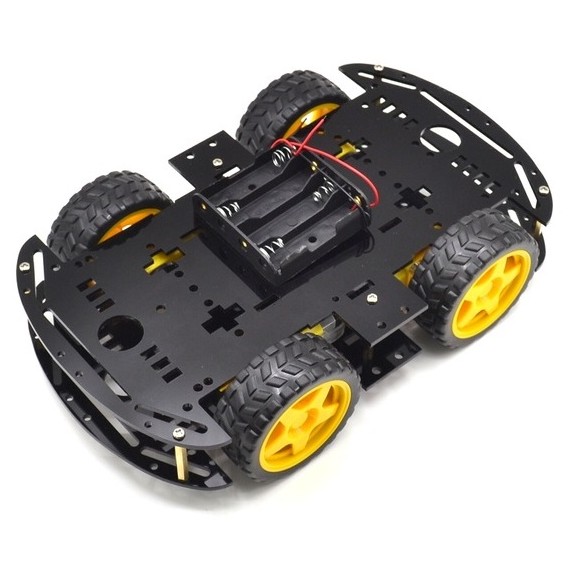

Robot Smart Car 4WD - Chassis 26cm

by OEM
Robot Smart Car 4WD multi utility robot is a great way to get started into four motor robot chassis. This is one great product to get your feet wet in the...
19-00010990
Gross Weight: 0.46kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
16.90
Without VAT 13.63

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Robot Smart Car 4WD multi utility robot is a great way to get started into four motor robot chassis. This is one great product to get your feet wet in the world of robotics.

The economical robot platform has in itself a lot of versatility. It features Four gearmotors with 65mm wheels. The chassis plates and mounts are cut from Black 3mm Acrylic and has holes for mounting Arduino, Sensors, Controlles and additional modules. Simply connect the two panels using included spacers and you’ll be able to attach everything in no time.

Robot can be constructed with motors either between the two plates or below the bottom plate for higher ground clearance. For line follower, we suggest higher ground clearance. For only obstacle avoidance, sandwich the motors between the plates.



  • Laser Cut Acrylic Chassis to enhance creativity & innovation
  • Four 100 RPM motors - Useful for any kind of robots
  • High Quality Wheels & Motors
  • M3 holes Arduino Board, Raspberry Pi and additional sensors
  • Battery holder, Brackets, screws and nuts included



NOTES

  • The kit requires assembling and needs a screwdriver to set the screws and nuts together.
  • The chassis may have a layer of paper on both sides. You may either choose to remove and assemble it, or leave it as is
  • Motors do not have wires soldered. You may need a Soldering Iron, Solder lead to solder wires to motors
  • Kit does not include batteries. Source 4 x AA batteries to get them rollin'
  • Sensors and electronics are not included.
  • Arduino or Raspberry Pi are not included.

THE PACKAGE INCLUDES

  • 2x Chassis plates
  • 4x Dual shaft gear motors
  • 4x Encoded Disks
  • 4x Plastic Wheels
  • 4x Rubber Tires
  • 8x Acrylic Motor brackets to hold two motors
  • 8x Cables for motors
  • 1x Battery holder with compartment for 4 AA Batteries
  • Set of Screws, Nuts, Mounts to assemble the chassis
  • Assembling instructions

EXTRA SPECIFICATIONS

  • Compatible Controller Module: Arduino and Raspberry Pi Compatible Microcontroller Board
  • Compatible Motor Controller: L298 Motor Driver Module and Arduino Motor shield
  • Motors: 100RPM High Torque Motors
  • Wheels: 70mm x 4mm Plastic wheels with rubber tires
  • Chassis: 3mm Thickness Laser cut Night Black chassis
  • Holes and Slots: Control Board, Motor Driver, Battery Holder, Sonar, Servos etc.
  • Dimensions: 26 x 16 x 8cm
  • Weight: 450gr
