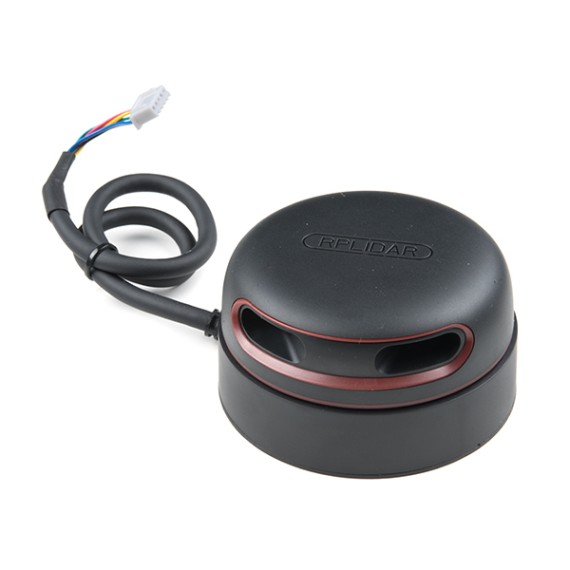

RPLiDAR A2M8 - 360° Laser Scanner Kit - 12M Range

by SLAMTEC
The RPLIDAR A2 is the next generation low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 8000 samples of laser...
32-00019903
Company: SLAMTEC
Part Number: A2M8
Made in: China
Out of Stock
Product out of stock
No stock in retail store
399.00
Without VAT 321.77

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The RPLIDAR A2 is the next generation low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 8000 samples of laser ranging per second with high rotation speed. And equipped with SLAMTEC patented OPTMAG technology, it breakouts the life limitation of the traditional LIDAR system so as to work stably for a long time.

RPLIDAR A2M8 is the enhanced version of the 2D laser range scanner(LIDAR). The system can perform a 2D 360-degree scan within a 12-meter range. The generated 2D point cloud data can be used in mapping, localization, and object/environment modeling.

The typical scanning frequency of the RPLIDAR A2 is 10hz (600rpm). Under this condition, the angular resolution will be 0.9°. And the actual scanning frequency can be freely adjusted within the 5-15hz range according to the requirements of users.

The RPLIDAR A2 adopts the low-cost laser triangulation measurement system developed by SLAMTEC, which makes the RPLIDAR A2 has an excellent performance in all kinds of indoor environment and outdoor environment without direct sunlight exposure. Meanwhile, before leaving the factory, every RPLIDAR A2 has passed strict testing to ensure the laser output power meets the standards of FDA Class I.

The core of RPLIDAR A2 runs clockwise to perform a 360-degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.

Application Scenarios

  • General robot navigation and localization
  • Environment scanning and 3D re-modeling
  • Service robot or industrial robot working for long hours
  • Home service /cleaning robot navigation and localization
  • General simultaneous localization and mapping (SLAM)
  • Smart toy’s localization and obstacle avoidance

THE PACKAGE INCLUDES

  • 1x A2M8 RPLIDAR (PWM motor driver embedded)
  • 1x Adapter Driver Board
  • 1x USB Cable
  • 1x DC Cable

SPECIFICATIONS

Sensor Type:
  • Proximity
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
600mA
Interface:
  • Digital
Communication Protocol:
  • UART
  • USB

SPECIFICATIONS

  • Distance Range: 0.15 - 12m
    • Based om white objects with 70% reflectivity
  • Angular Range: 0-360 Degree
  • Distance Resolution: <0.5mm
  • Angular Resolution: 0.45~1.35 degree
    • Typical 0.9 degree
  • Sample Duration: 0.25ms
  • Sample Frequency: 2000~8000Hz
    • Typical 4000Hz
  • Scan Rate: 5~15Hz
    • Typical 10Hz
  • Dimensions: 76x76x41mm
  • Weight: 190g

FEATURES

  • 4cm Ultra-thin design, light & portable
  • 8000 times sample rate, the highest in the current economical LIDAR industry
  • 360-degree laser range scanning
  • Low Noise, Brushless Motor New Non-contact Drive
  • 12m Range Radius
  • OPTMAG Original Design, prolong the life-span
  • Class 1 Laser Safety Standard
  • High-speed RPVision Range Engine: RPVision 2.0
  • Five years of ultra-long life
  • Ideal for all kinds of service robots
