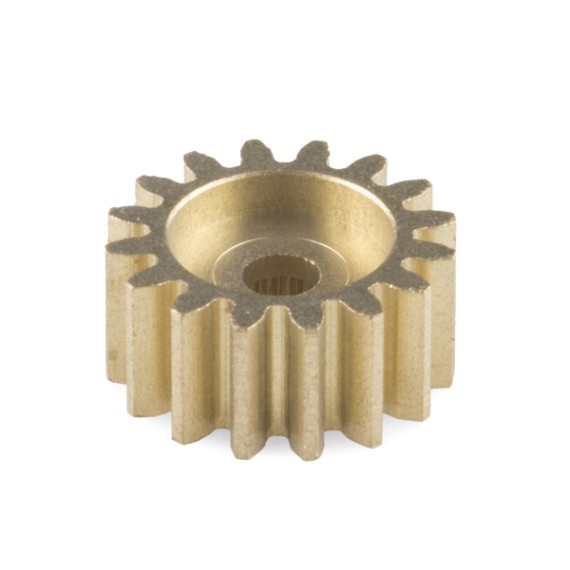

Servo Gear - Hitec (16T, Metal)

από SERVOCITY
These servo gears are made specifically to fit a Hitec C1 servo spline, allowing you to mate other gears to your servo. They have 16 teeth with a gear pitch...
17-00615278
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 615278
Χώρα Προέλευσης: ΗΠΑ
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
18.60
Χωρίς ΦΠΑ 15.00
+

ΠΕΡΙΓΡΑΦΗ

These servo gears are made specifically to fit a Hitec C1 servo spline, allowing you to mate other gears to your servo. They have 16 teeth with a gear pitch of 32P, an outer diameter of 0.563", and utilize the C1 Hitec servo spline.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
615278
Μικτό Βάρος:
0.004535kg
Χώρα Προέλευσης:
ΗΠΑ
Τύπος Γραναζιού:
  • Servo Gear
Αριθμός Δοντιών:
16
Διάκενο Δοντιών:
32P
Εσωτερική Διάμετρος:
3mm
Εξωτερική Διάμετρος:
14.3mm
Servo Standar
:
24T (Hitec)
Υλικό:
Brass

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Teeth - 16T at 32P
  • OD - 0.563"
  • PD - 0.500"
  • C1 Hitec Spline
