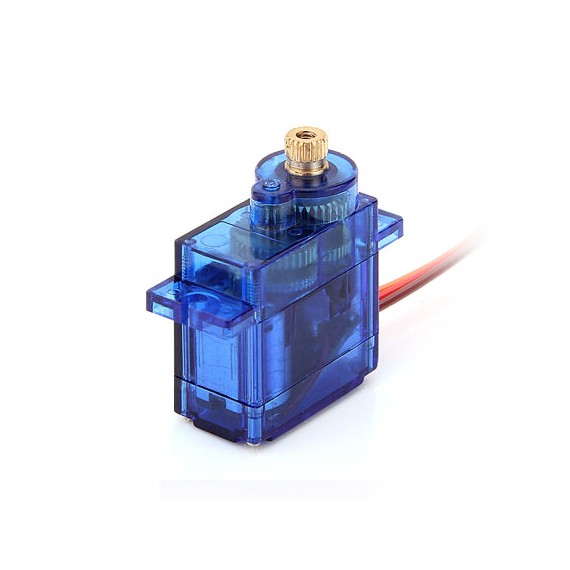

Servo Micro 1.8kg.cm Metal Gears (Feetech FS90MG)

Feetech, FS90MG
11-00012791
7.90
Out of Stock

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Low Availability
Company:
Feetech
MPN:
FS90MG
Made in:
China
Gear Type:
Metal
Rotation:
120°
Servo Operation:
Analog
Servo Size :
Micro
Speed (6V):
0.10sec/60°
Torque (6V):
1.8kg.cm

Specifications:

  • Operating Speed:
    • 0.12sec/60degree (4.8V)
    • 0.10sec/60degree (6V)
  • Stall Torque:
    • 1.5kg.cm/20.87oz.in(4.8V)
    • 1.8kg.cm/25.04oz.in(6V)
  • Operating Voltage: 4.8V~6V
  • Control System: Analog
  • Direction: CCW
  • Operating Angle: 120degree
  • Required Pulse: 900us-2100us
  • Bearing Type: None
  • Gear Type: Metal
  • Motor Type: Metal
  • 23.2 × 12.5 × 22 mm
  • Weight: 14 g
  • Connector Wire Length: 20 cm
