Servo Mini 3.5kg.cm (Feetech FT1117M)

by Feetech
The FT1117 from FEETECH is a miniature-sized servo with the same output spline as standard servos, making it compatible with standard-sized servo horns, and...
11-00012818
Company: Feetech
Made in: China
Out of Stock
Product out of stock
Available in store
8.90
Without VAT 7.18

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

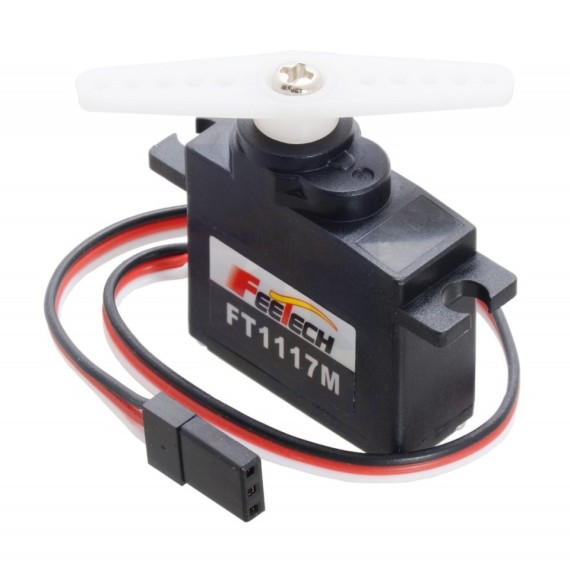

The FT1117 from FEETECH is a miniature-sized servo with the same output spline as standard servos, making it compatible with standard-sized servo horns, and the gear train is made primarily of metal gears. Servo horns and associated hardware are included.

SPECIFICATIONS

Gear Type:
Metal
Rotation:
120°
Servo Operation:
Digital
Servo Size :
Mini
Speed (6V):
0.11sec/60°
Torque (6V):
3.5kg.cm

EXTRA SPECIFICATIONS

  • Operating Speed:
    • 0.13sec/60degree (4.8V)
    • 0.11sec/60degree (6V)
  • Stall Torque:
    • 3kg.cm/41.74oz.in(4.8V)
    • 3.5kg.cm/48.69oz.in(6V)
  • Operating Voltage: 4.8V~6V
  • Servo Operation: Digital
  • Operating Angle: 120degree
  • Required Pulse: 900~2100us

Dimensions

  • 30×12×31.7mm
  • Weight: 20 g
  • Connector Wire Length: 18 cm
