Servo Standard 6kg.cm Continuous Rotation (Feetech FS5106R)

by Feetech
This servo FS5106R rotates fully forward or backwards instead of moving to a position.
11-00051063
Company: Feetech
Made in: China
In Stock
Ships in 24 Hours
Available in store
12.50
Without VAT 10.08
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 10.00 8.75 7.50
WISHLIST COMPARE

DESCRIPTION

This servo FS5106R rotates fully forward or backwards instead of moving to a position. You can use any servo code, hardware or library to control these servos. Good for making simple moving robots. Comes with one horn only, as shown.

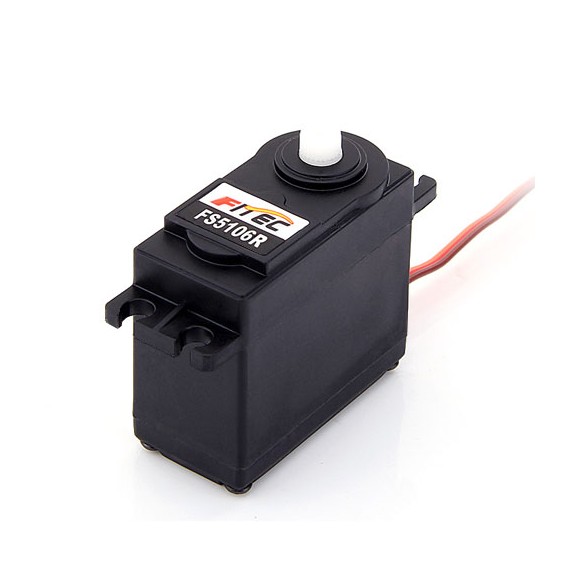

Includes 4 Arms as shown in the picture.

SPECIFICATIONS

Gear Type:
Plastic
Rotation:
360°
Servo Operation:
Analog
Servo Size :
Standard
Speed (6V):
0.16sec/60°
Torque (6V):
6kg.cm

EXTRA SPECIFICATIONS

  • Operating Speed:
    • 0.18sec/60degree (4.8V)
    • 0.16sec/60degree (6V)
  • Stall Torque:
    • 5kg.cm/69.56oz.in(4.8V)
    • 6kg.cm/83.47oz.in(6V)
  • Operating Voltage: 4.8V~6V
  • Control System: Analog
  • Direction: CCW
  • Operating Angle: 360degree
  • Required Pulse: 500us-2500us
  • Bearing Type: 2BB
  • Gear Type: Plastic
  • Motor Type: Metal

Dimensions

  • 40.8 × 20.1 × 38 mm
  • Weight: 40 g
  • Connector Wire Length: 30 cm
