Shelly 1 Gen3

Κωδικός:

18-00016721

ΚατασκευαστήςShelly

Εξαντλημένο

€19⁹⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

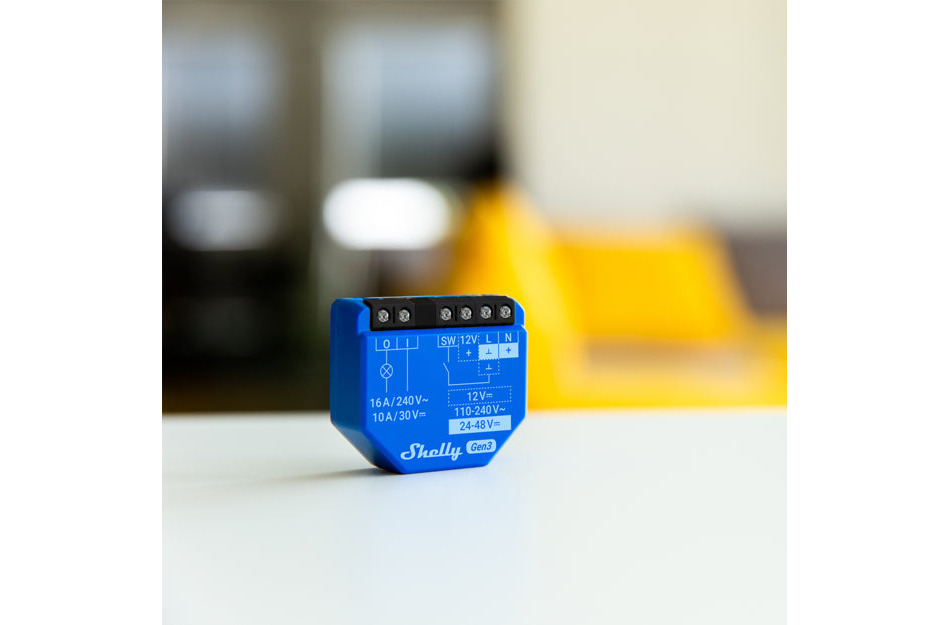

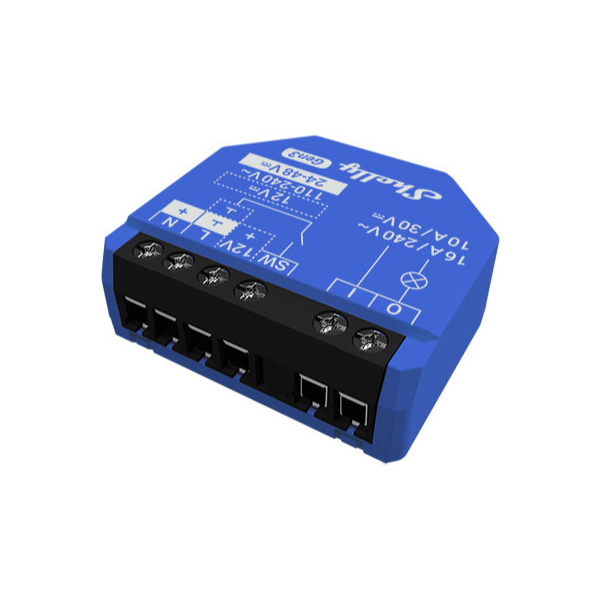

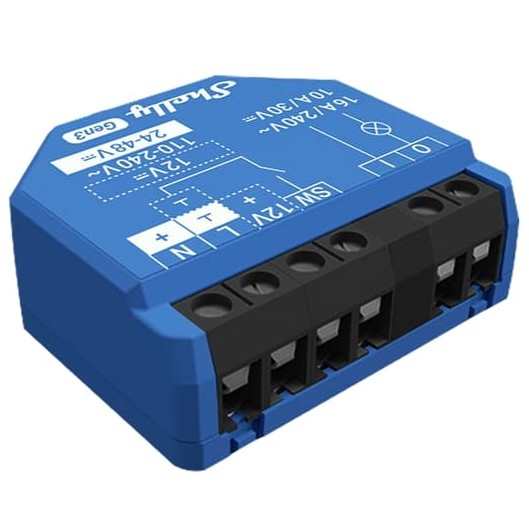

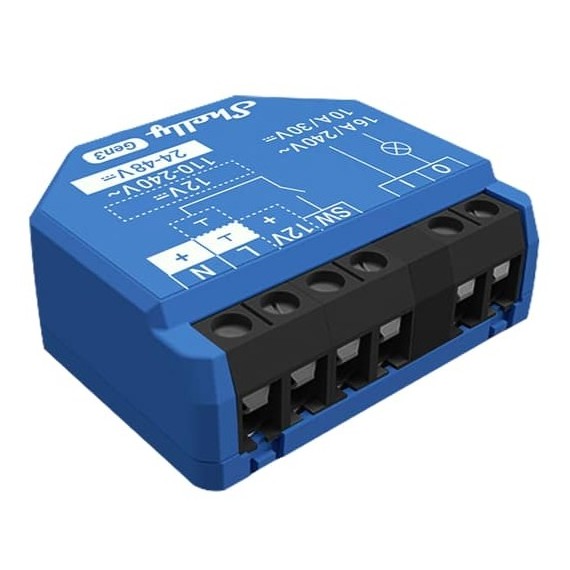

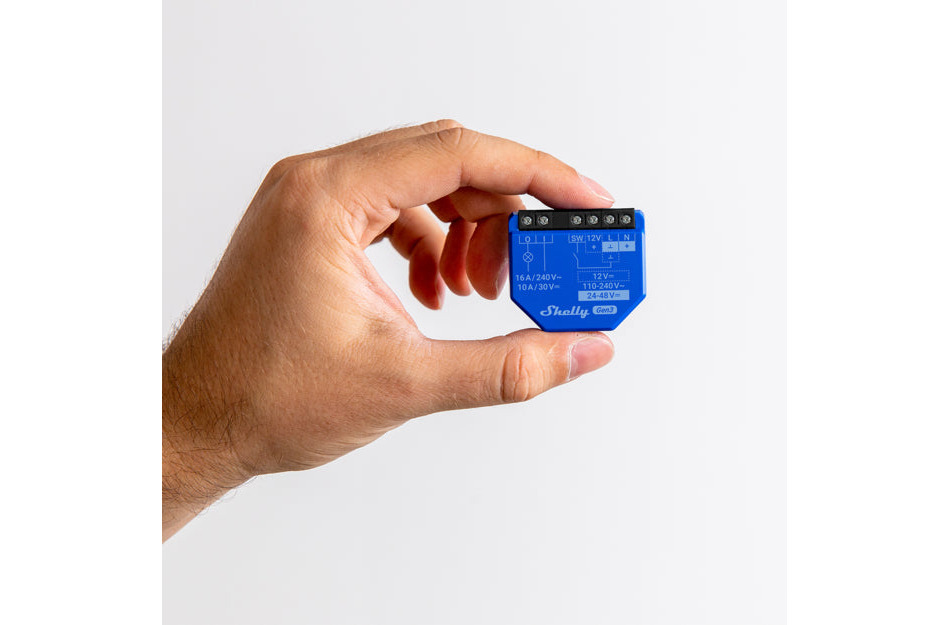

Shelly 1 Gen3 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor.

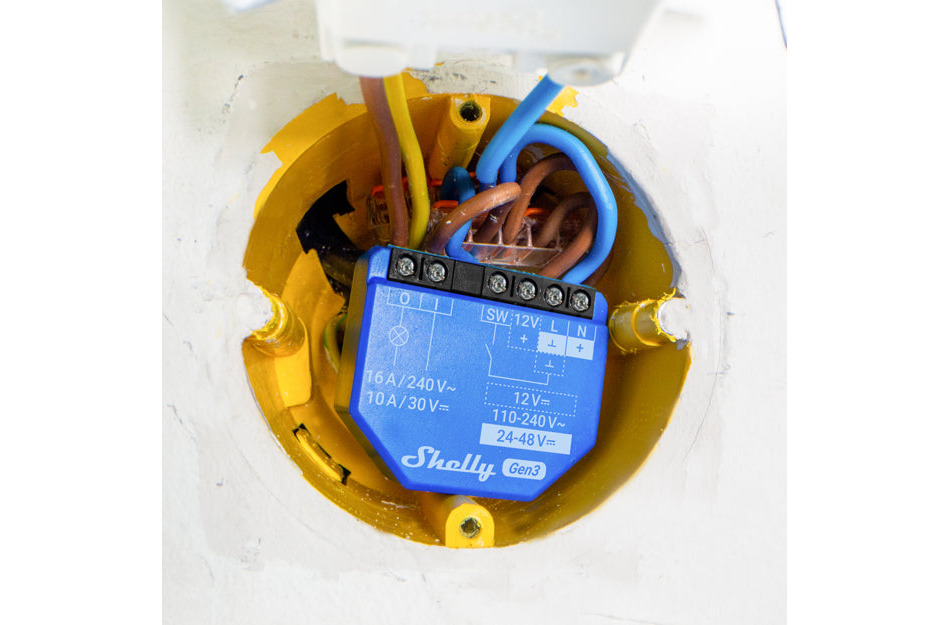

Shelly 1 Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet. It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space. Shelly 1 Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Key features

Dry contacts (potential-free) - option for contactor control
New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
Improved durability of terminals
High security
Wi-Fi range extender & Bluetooth gateway
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

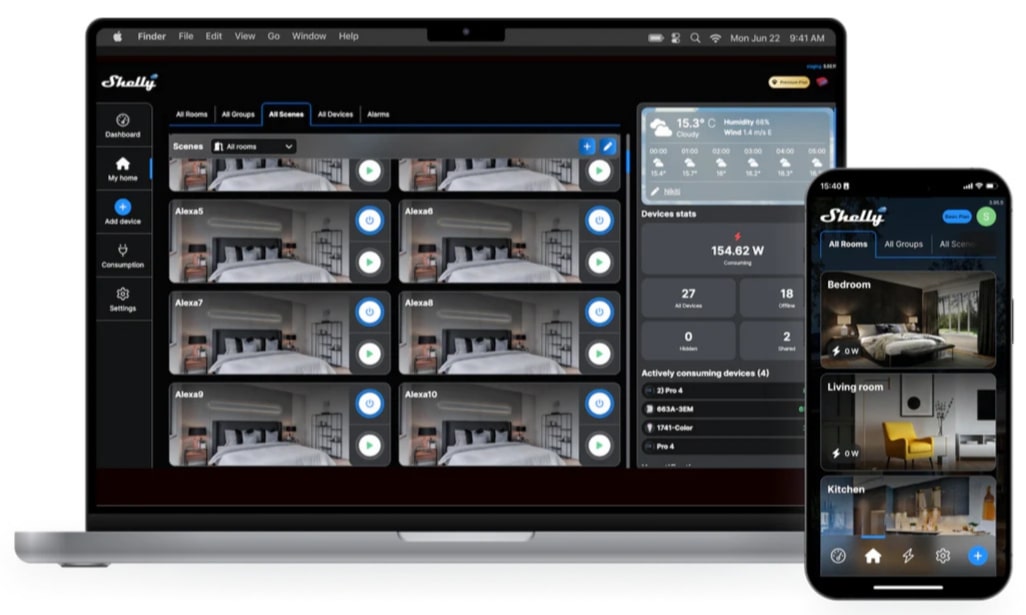

No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
Supports KNXnet / IP communication

Use cases

Remote Appliance Control: Turn on or off electric appliances remotely using your mobile phone, tablet, PC, or home automation system.
Internet-Connected Convenience: Access аnd control devices from anywhere with internet connectivity, as long as the Shelly 1 Gen3 is connected to a Wi-Fi router.
Home Automation: Shelly 1 Gen3 enables automatic control of power appliances for more relaxing and enjoyable experience.

Main features

Wi-Fi Connectivity: The device can connect to your home Wi-Fi network, allowing you to remotely monitor humidity and temperature data through a smartphone app or other compatible devices.
Integration with Smart Home Platforms: You can integrate the Shelly 1 Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.
Local and Cloud Control: Can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.
Bluetooth Connectivity: Bluetooth and BLE gateway are available for inclusion purposes, which may be useful during the setup process.
User-Friendly Interface: The device provides a user-friendly interface with a reset button for manual interactions.
Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
Wireless Connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.
Dry Contact: Allows switching on and off of lower voltage devices.
BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
Wi-Fi Range extender for IoT devices: A Wi-Fi extender is employed to expand the reach of your Wi-Fi network by receiving your current Wi-Fi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
Scripting
Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.
Virtual Components

Device electrical interfaces

Inputs
- 1 switch/button input on screw terminal
- 1 potential-free contacts relay input on screw terminal
- 2 power supply inputs on screw terminals: N and L
Outputs
- 1 potential-free contacts relay output on screw terminal

Connectivity

Wi-Fi
Ethernet
Bluetooth

Safety function

Overheating protection

Supported load types

Resistive (incandescent bulbs, heating appliances)
Capacitive (capacitor banks, electronic equipment, motor starting capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

Smart irrigation

Using Shelly 1 Gen3, you can effortlessly set up your irrigation system to water your garden on sunny days and skip watering on rainy days. Using its advanced scripting capabilities or the Shelly Smart Control App Premium, you can configure the device to take weather forecasts into account, ensuring optimal watering schedules based on real- time weather conditions. For optimal precision in your automation, you can also use the Shelly Plus Add-on with a soil moisture sensor.

Control your garage door remotely

Automate your garage door and gain control from anywhere in the world! Shelly 1 Gen3, with its operational voltages of 12V DC and 24-48V DC, is ideally suited for managing garage doors. By using the Shelly Plus Add-on and a Reed switch, you can also know the current state (open/closed).

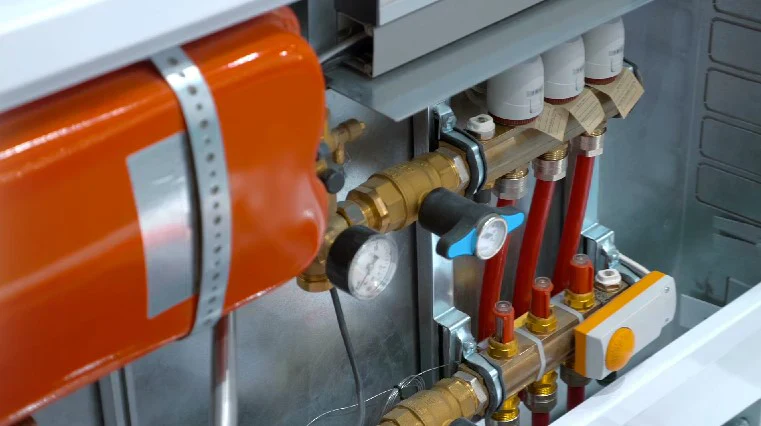

Optimal heating and cooling

With Shelly 1 Gen3, you can effortlessly control valves and heating/cooling manifolds in your home, ensuring precise water flow management for optimal temperature regulation and energy efficiency. Using it together with Shelly BLU H&T for each area, you can create schedules and scenes to open valves for hot water distribution when temperatures drop and switch between heating and cooling modes based on the current temperature. This setup maintains a comfortable climate year-round, reduces manual intervention, and allows remote adjustments.

Smart lighting

Automate your lights to turn on at sunset and off at bedtime, ensuring your home is always well-lit when needed. Using Shelly 1 Gen3's scheduling capabilities, you can create custom lighting schedules and scenes to match your daily routine. Whether you're home or away, control your lights remotely and save energy by ensuring lights are never left on unnecessarily. And don't worry - light switches can still be used manually to suit the needs of everyone in your home.
