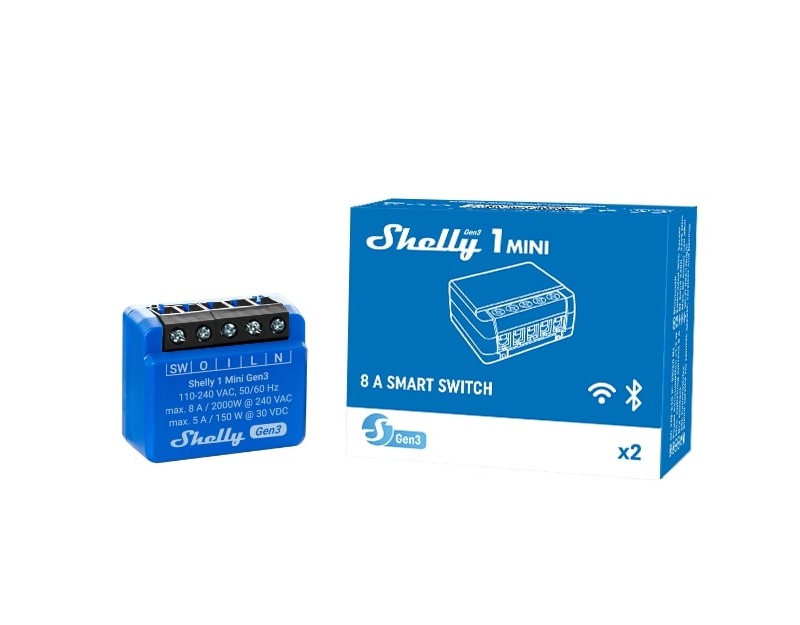

Shelly 1 Mini Gen3

Κωδικός:

18-00016719

ΚατασκευαστήςShelly

Εξαντλημένο

€16⁴⁰

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

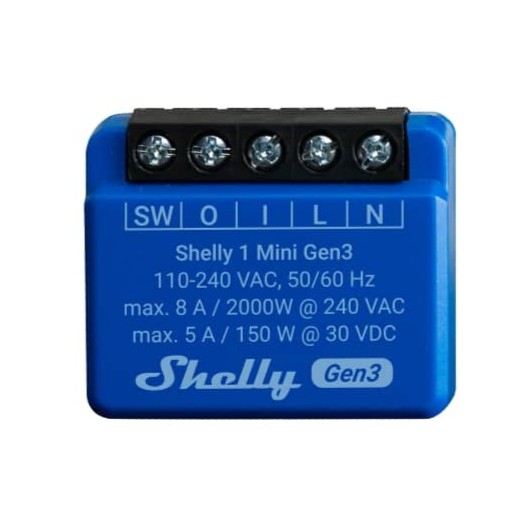

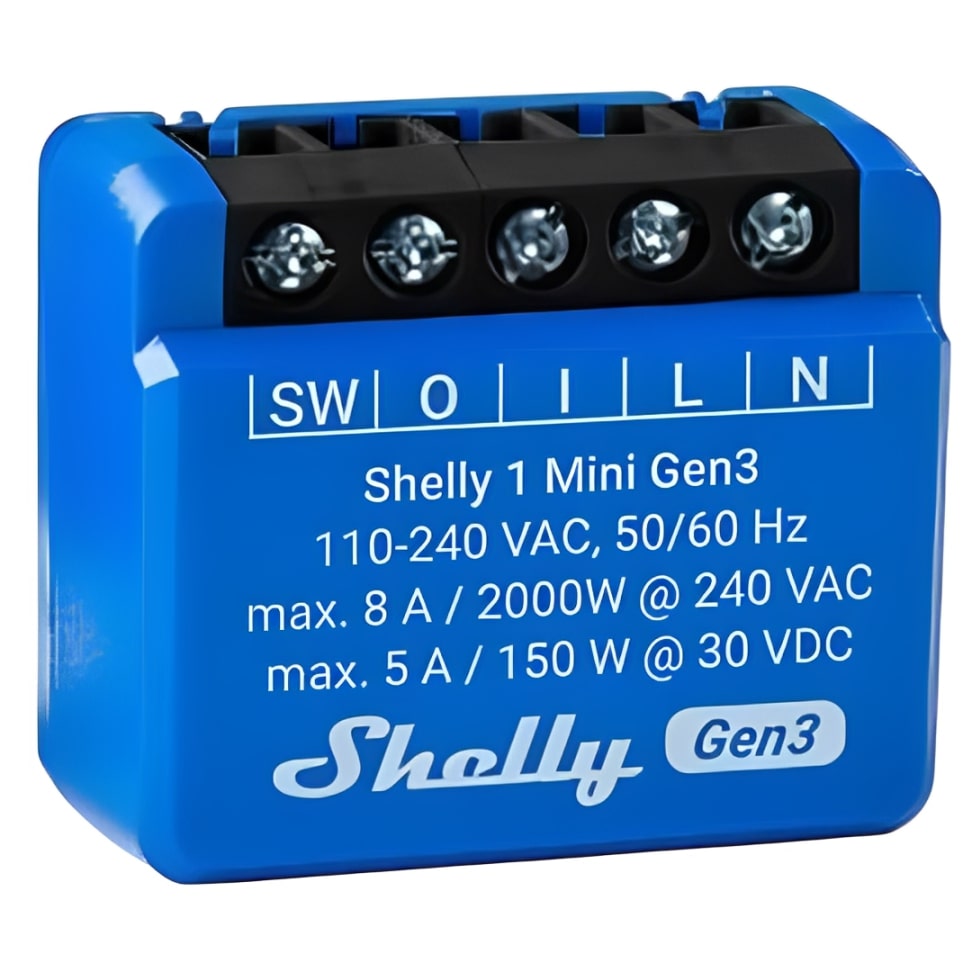

Shelly1 Mini Gen3 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly Plus 1 Mini with a more advanced processor and increased memory.

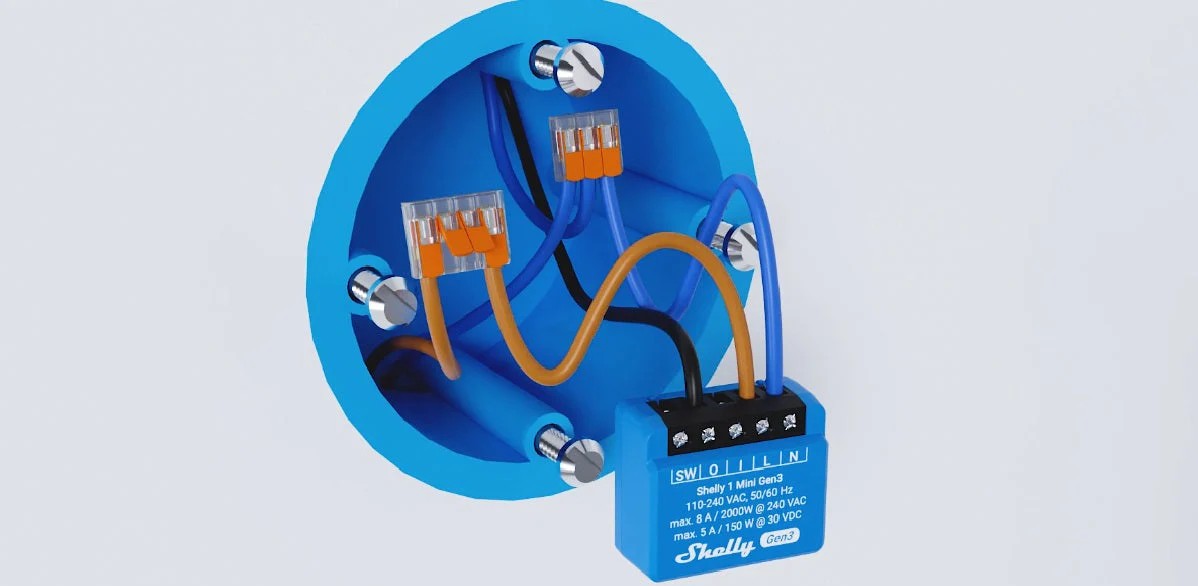

Shelly1 Mini Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet. It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space. Shelly1 Mini Gen3 Mini has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Key features

Equipped with a new processor & increased flash memory - ESP Shelly
Improved durability of terminals
Supports up to 8 A at 240 VAC and 5 A at 30 VDC
Dry contacts (potential-free) - option for contactor control
Wi-Fi range extender & Bluetooth gateway
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Supports KNXnet / IP communication

Use cases

Remote Appliance Control: Turn on or off electric appliances remotely using your mobile phone, tablet, PC, or home automation system.
Internet-Connected Convenience: Access аnd control devices from anywhere with internet connectivity, as long as the Shelly 1 Mini Gen3 is connected to a Wi-Fi router.

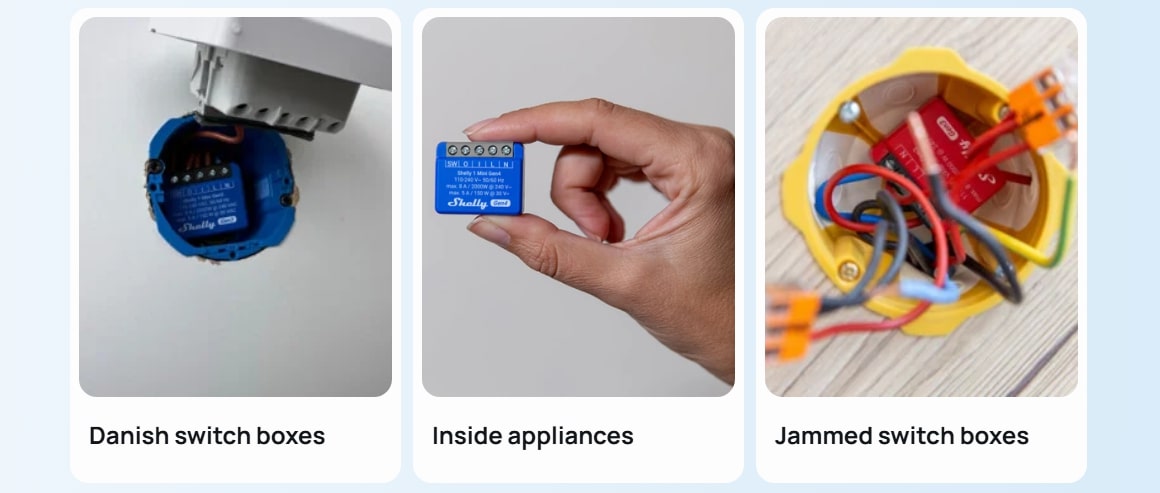

Space-Efficient Retrofitting: Retrofit the smart switch into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.
Home Automation: Shelly 1 Mini Gen3 enables automatic control of power appliances for more relaxing and enjoyable experience.

Main features

Wi-Fi Connectivity: The device can connect to your home Wi-Fi network, allowing you to remotely monitor humidity and temperature data through a smartphone app or other compatible devices.
Integration with Smart Home Platforms: You can integrate the Shelly 1 Mini Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.
Bluetooth Connectivity: Bluetooth and BLE gateway are available for inclusion purposes, which may be useful during the setup process.
User-Friendly Interface: The device provides a user-friendly interface with a reset button for manual interactions.
Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
Wireless Connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.
Dry Contact: Allows switching on and off of lower voltage devices.
BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
WiFi Range extender for IoT devices: A WiFi extender is employed to expand the reach of your WiFi network by receiving your current WiFi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
Scripting
Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.

Device electrical interfaces

Inputs
- 1 switch/button input on screw terminal
- 1 potential-free contacts relay input on screw terminal
- 2 power supply inputs on screw terminals: N and L
Outputs
- 1 potential-free contacts relay output on screw terminal

Connectivity

Wi-Fi
Bluetooth

Safety functions

Overheating protection

Supported load types

Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners))

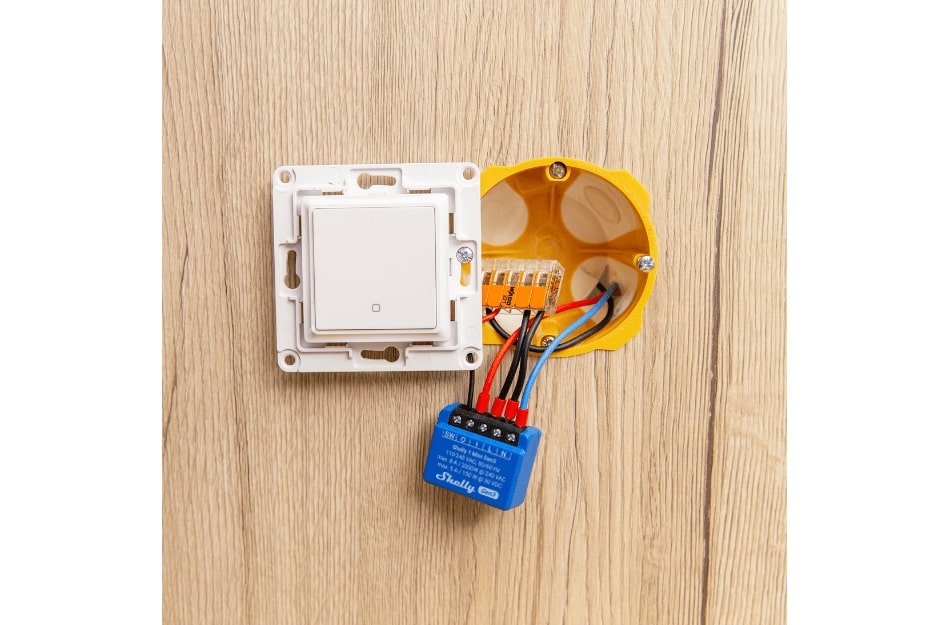

Lighting control wherever you need it

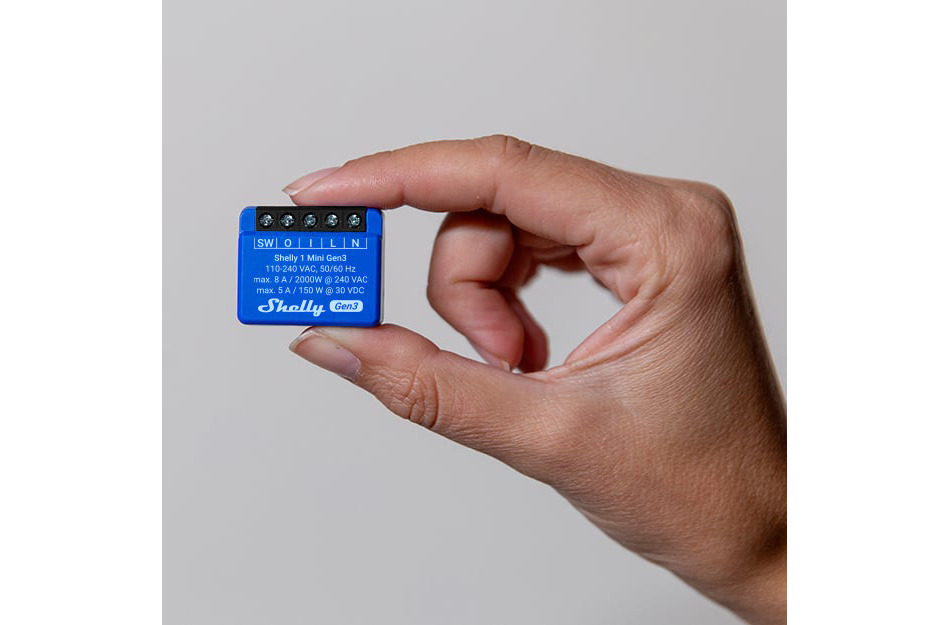

Thanks to its compact size, Shelly Mini 1 Gen3 can discreetly fit within the ceiling rose of your lamp or in jammed wall boxes. Once installed, Shelly Mini 1 Gen3 enables you to effortlessly control your lights or other appliances using the Smart Control App, your preferred platform, or voice assistant. Easily customize your lights according to your daily routine with personalized schedules and save on energy. Set your hallway lights to automatically switch off past your family's bedtime, ensuring a peaceful night's sleep. And don't worry - you can still use your light switches manually to suit the needs of everyone in your home.

Control your garage door

Shelly 1 Mini Gen3's compact design allows for flexible placement options, enabling you to install it directly within the garage door opener's housing or even near the motor. Its 8A power handling capability ensures reliable garage door control, allowing you to conveniently operate your garage door remotely without the need for bulky external modules.

Automate your irrigation system based on the weather

Shelly Mini 1 Gen3's smaller form factor allows it to be installed modestly near the irrigation system's control panel or inside waterproof enclosures, ensuring protection from the elements. Its 8A capacity is perfectly suitable for managing irrigation valves, offering seamless automation and conserving water based on weather conditions by using its scripting capabilities.

Make any small electrical appliance smart

Transforming old electrical appliances into smart devices becomes even more accessible with Shelly 1 Mini Gen3. Its 8A limit is perfect for transforming small to medium-sized appliances into smart devices, such as lamps, coffee makers, and others. Place it in the socket or fit it discreetly inside the appliance's casing, avoiding the need for additional external wiring.
