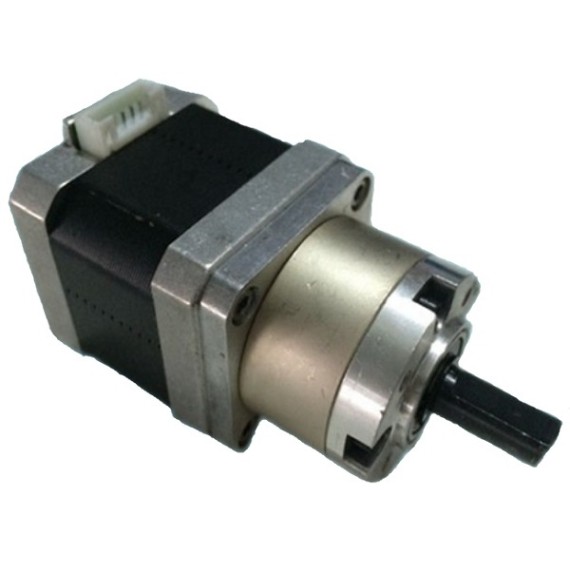

Stepper Motor Planetary 18.6kg.cm (1036 steps/rev) 42BYGHW615AG5.18-X

High-torque stepper motor with 0.34° step angle (full step) with D-Shaft for easy and reliable connection with coupler. T hese steppers are a great way to...
14-00010876
Gross Weight: 0.5kg
Company: Wantai Motors
Made in: China
In Stock
Ships in 24 Hours
Available in store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

DESCRIPTION

High-torque stepper motor with 0.34° step angle (full step) with D-Shaft for easy and reliable connection with coupler. These steppers are a great way to get things moving, especially when positioning and repeatability is a concern. This is a Bipolar motor.

SPECIFICATIONS

Step Angle:
0.34
Holding Torque:
18.6kg.cm
Rated Voltage:
4.2Volt
Rated Current:
1.5A/Phase

NOTES

  • This stepper comes with D-Shaft and JST PH male connector on body of motor.

SPECIFICATIONS

  • Stepper Specs:
    • Step Angle (degrees): 1.8
    • 2-Phase (4-Wires)
    • Rated Voltage: 4.2V
    • Rated Current: 1.5A/Phase
    • Holding Torque: 36N.cm (3600g-cm)
    • Resistance: 2.8Ω/phase
    • Inductance: 3.6mH/phase
  • Planetary Gearbox:
    • Holding Torque: 186N.cm (18600g-cm)
    • Step Angle (degrees): 0.34
    • 1036 steps/rev

Διαστάσεις

  • 42 x 42 x 66.5mm
  • Weight: 400gr
  • Shaft Diameter: 8mm
  • Shaft Length: 17mm
  • 4 x M3 Holes for mounting base
