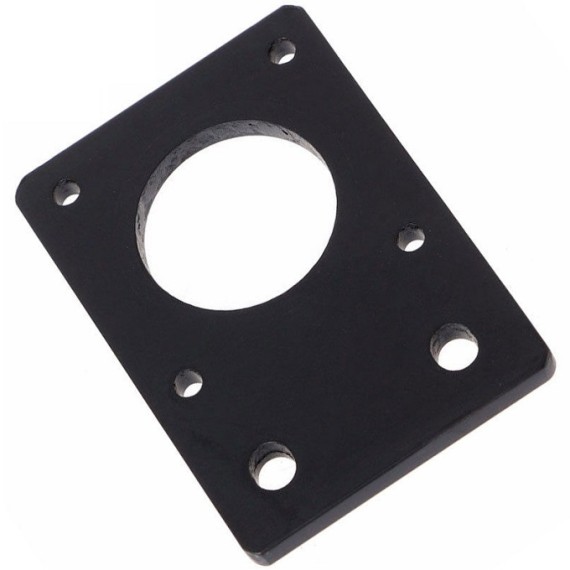

Motor Mount Plate for NEMA 17 - 4mm

by OEM
The NEMA 17 stepper motors can be mounted to 2020 Aluminum Extrusion using this plate. To mount the motor requires 4x M3x8 screws. 2x M5x8 screws and...
14-00018818
Volumetric weight: 0.01kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
3.60
Without VAT 2.90
+
WISHLIST COMPARE

DESCRIPTION

The NEMA 17 stepper motors can be mounted to 2020 Aluminum Extrusion using this plate.

To mount the motor requires 4x M3x8 screws. 2x M5x8 screws and 2020 Hammerhead or Slide In T-Nuts. (Screws and Nuts not included)

SPECIFICATIONS

Μotor Diameter:
NEMA 17
Form Factor:
NEMA 17
Material:
Aluminium

Notes

EXTRA SPECIFICATIONS

  • Color: Black
  • Material: 4mm Anodized Aluminum
  • Application: CNC/3D printer/laser engraving machine constructing, etc.

Dimensions

  • 60 x 41.6 x 4mm
  • Mounting holes: 5.2mm
  • Motor mount: 3.2mm
  • Motor hole: 24.5mm
