Stereo Digital Audio Amplifier Module 2X50W - TPA3116

39-00013601
CompanyOem
In Stock
Ships in 24 Hours
€1680
Our quantity discounts:
Quantity
10+
Price
€13.44
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

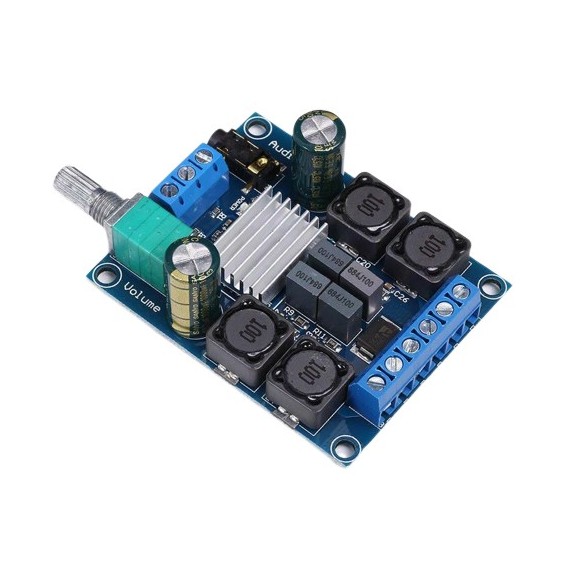

This audio amplifier using TPA3116D2 chip, 4.5V-26V wide voltage input, high efficiency class D operation, advanced modulation system configuration, multiple switching frequencies, AM interference prevention, master-slave mode synchronization.

Have dual channel stereo, output power: 2x50W, for excellent performance.

Excessive-performance metallic polyester movie inductors, high-performance capacitors (most temperature resistance 105 levels), enter reverse connection safety, over-voltage/low-voltage safety.

Wonderful efficiency and cost-effective, extensively utilized in retailer drainage, dwelling theater, bookshelf audio, automotive audio system, DIY audio, and many others.

Jack 3.5mm audio port input.

  • Energy provide voltage: DC4.5V-26V (24V is really helpful)
  • Twin channel: 2x50W
  • Magnification: Class D
  • Noise ratio: 102dB
  • Switching frequency: 1.2MHz
  • Stereo: Yes, twin channel
  • Enter reverse connection safety: Yes
  • Overvoltage/low stress safety: Yes
  • Dimensions: 78x51.5x22.5mm

Company
Oem
Warranty
Component, not covered by warranty
G. Weight
0.05kg
