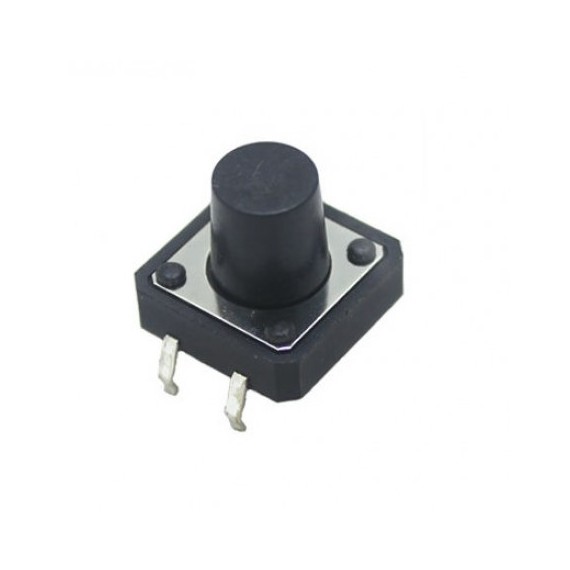

Tact Switch 12x12mm 12mm 4Pins

by OEM
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic...
29-00011596
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.1500
Without VAT 0.12
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.1200 0.1050 0.0900
WISHLIST COMPARE

DESCRIPTION

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.

SPECIFICATIONS

Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

EXTRA SPECIFICATIONS

  • Operating Force: 180/250(±30gf)
  • Environment temperature: -25°C-70°C
  • Electrically Life: 50,000cycles
  • Dielectric Strength : AC250V(50/60Hz for 1minute)
  • Insulation Resistance: 100MΩ(minDC 250V)
  • Contact Resistance : 50mΩ max(initial)
  • Rating: 50mA 12VDC
  • Protection Level: IP40
  • Function: ON-OFF
  • Switch type: tactile switch
