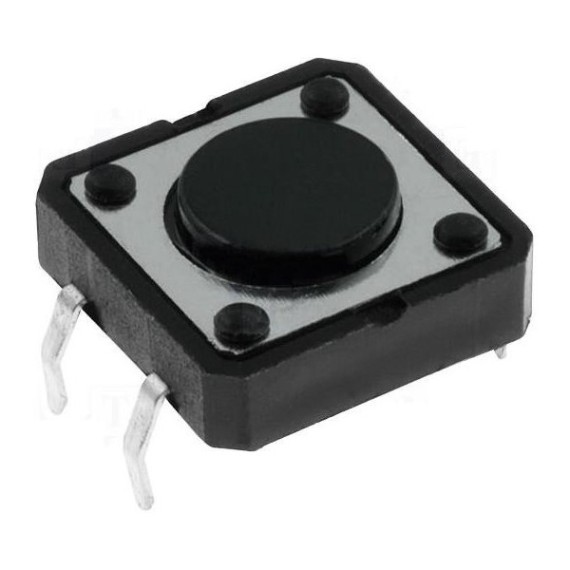

Tact Switch 12x12mm 4.3mm

by Ninigi

This is a standard 12mm square momentary button.

05-00018490
Gross Weight: 0.01kg
Company: Ninigi
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.1500
Without VAT 0.12
+
Our quantity discounts:
Quantity 100+ 500+ 1000+
Price 0.0992 0.0868 0.0620
WISHLIST COMPARE

DESCRIPTION

This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it 'clicks' really well). This button is great for user input on a PCB or a good, big reset button on a breadboard. Breadboard friendly!

SPECIFICATIONS

Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

EXTRA SPECIFICATIONS

  • Switch type microswitch
  • Stable positions number 1-position
  • Contacts configuration SPST-NO
  • DC contacts rating (at resistance load) 0.05 A / 12 VDC
  • Mounting THT
  • Switching torque 1.27N
  • Body dimensions 12 x 12mm
  • Button height
  • (measured from PCB) 4.3mm
  • Switching method OFF-(ON)
  • Button shape round
  • Terminal pitch 5x12.5mm
  • Operating temperature -25...70°C
  • Actuator colour black
  • Leads for PCB, straight
  • Max. contact resistance: 50mΩ
  • Min. insulation resistance 100MΩ
  • Soldering temperature 250°C
