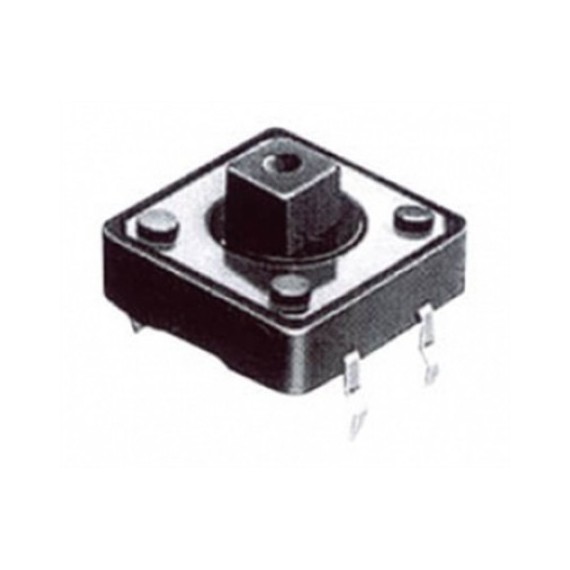

Tact Switch 12x12mm 7.3mm

by OEM
Miniature Single Pole Single Throw switches. These are high quality Omron type B3F momentary on switches. Perfect as a tactile reset switch. Mounts directly into standard bread boards.
05-00018491
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.1500
Without VAT 0.12
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.1200 0.1050 0.0900
WISHLIST COMPARE

DESCRIPTION

This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it 'clicks' really well). This button is great for user input on a PCB or a good, big reset button on a breadboard. Breadboard friendly!

SPECIFICATIONS

Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

SPECIFICATIONS

  • Stable positions number 1-position
  • Contacts configuration SPST-NO
  • DC contacts rating
  • (at resistance load) 0.05 A / 12 VDC
  • Mounting THT
  • Switching torque 1.27N
  • Body dimensions 12 x 12mm
  • Button height
  • (measured from PCB) 7.3mm
  • Switching method OFF-(ON)
  • Button shape square
  • Terminal pitch 5x12.5mm
  • Operating temperature -25...70°C
  • Actuator colour black
  • Leads for PCB, straight
  • Max. contact resistance: 50mΩ
  • Min. insulation resistance 100MΩ
  • Soldering temperature 250°C
  • Button size 3.8x3.8mm
