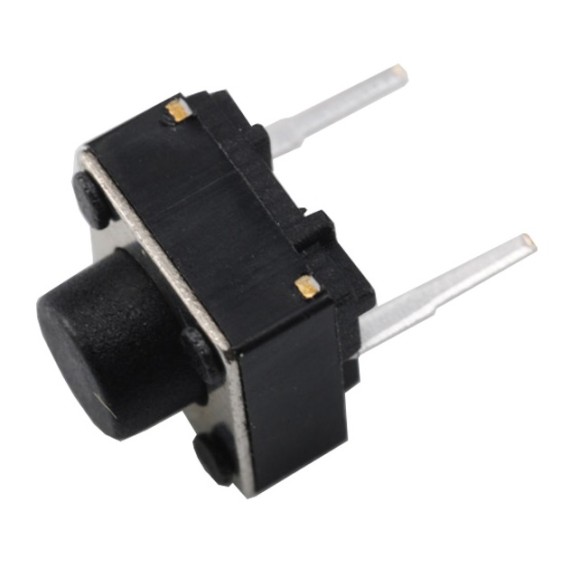

Tact switch 6x6mm 5mm 2pins (Breadboard Compatible)

by OEM
We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect...
29-00016625
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.0600
Without VAT 0.05
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.0480 0.0420 0.0360
WISHLIST COMPARE

DESCRIPTION

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect as a tactile reset switch. These buttons are rated up to 50mA.

SPECIFICATIONS

Breadboard Friendly :
Yes
Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

SPECIFICATIONS

  • Contacts configuration: SPST-NO
  • DC contacts rating (at resistance load): 0.05 A / 12 VDC
  • Mounting: THT
  • Switching torque: 1.6N
  • Switching method: OFF-(ON)
  • Button shape: Round
  • Operating temperature: -25...70°C
  • Actuator colour: Black
  • Leads for: PCB, straight
  • Max. contact resistance: 50mΩ
  • Min. insulation resistance: 100MΩ
  • Soldering temperature: 250°C

Διαστάσεις

  • Body: 6 x 6mm
  • Button height (measured from PCB): 5mm
  • Terminal pitch: 4.5mm
