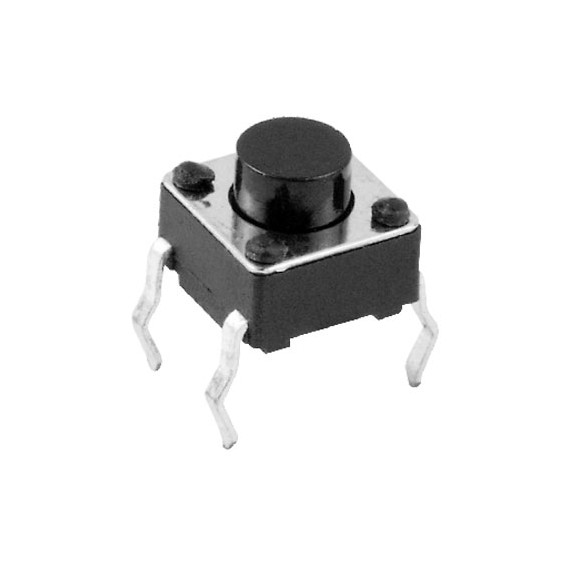

Tact Switch 6x6mm 5mm 4pins

από NINIGI

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly.

05-00018496
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: NINIGI
Part Number: TACT-65K-F
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
0.10
Χωρίς ΦΠΑ 0.08
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 0.0800 0.07

ΠΕΡΙΓΡΑΦΗ

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect as a tactile reset switch. These buttons are rated up to 50mA.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
NINIGI
Part Number:
TACT-65K-F
Μικτό Βάρος:
0.000251kg
Χώρα Προέλευσης:
Κίνα
Διαμόρφωση Επαφών
:
  • SPST-NO
Μέθοδος Εναλλαγής
:
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Επαφές για:
PCB

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Contacts configuration SPST-NO
  • DC contacts rating (at resistance load) 0.05 A / 12 VDC
  • Mounting THT
  • Switching torque 1.6N
  • Body dimensions 6 x 6mm
  • Button height (measured from PCB) 5mm
  • Switching method OFF-(ON)
  • Button shape round
  • Terminal pitch 4.5x6.5mm
  • Operating temperature -25...70°C
  • Actuator colour black
  • Leads for PCB, straight
  • Max. contact resistance: 50mΩ
  • Min. insulation resistance 100MΩ
  • Soldering temperature 250°C
