Tact Switch Assortment Kit 6x6mm 4pins - 200pcs

by OEM
Tactile switches are standard input "buttons" on electronic projects. These work best in a PCB. The pins are normally open (disconnected) and when the...
19-00090192
Gross Weight: 0.1kg
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
5.50
Without VAT 4.44

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Tactile switches are standard input "buttons" on electronic projects. These work best in a PCB. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed.

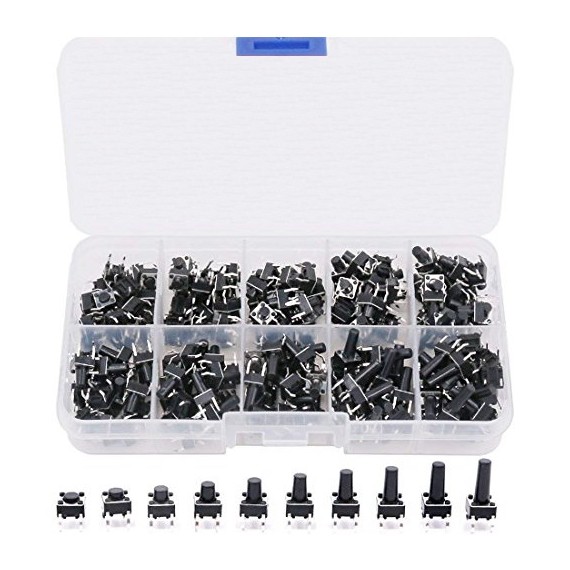

They come in a pack of 200, the package contains 10 values (each values 20pcs), packed in a rugged convenient re-sealable plastic storage case.

High precision mechanism design micro push button switch, supply perfect operation and long service life. Great for multiple electronic products, button pad eg key board,remote, game controller, household appliances, and other fields.

  • Momentary Push Buttons
  • Tact Assortment Kit
  • High Precision
  • Easy to Store & Use
  • Great for multiple electronic projects



THE PACKAGE INCLUDES

  • 20x 6x6x4.3mm
  • 20x 6x6x5mm
  • 20x 6x6x6mm
  • 20x 6x6x7mm
  • 20x 6x6x8mm
  • 20x 6x6x9mm
  • 20x 6x6x10mm
  • 20x 6x6x12mm
  • 20x 6x6x13mm
  • 20x 6x6x15mm



NOTES

  • Tact Switches are sorted manually, so there might be small mistakes on type and quantity. Thanks for your understanding.

SPECIFICATIONS

Contacts configuration :
SPST-NO
Switching method :
OFF-(ON)
DC or AC Rating:
0.05A / 12VDC
Leads for:
PCB

EXTRA SPECIFICATIONS

  • Contact Type: Momentary Contact
  • Voltage Rating: DC 12V
  • Current Rating: 50mA
  • Contact Resistance: 100M Ohm
  • Voltage: AC250V (50HZ) / MIN
  • Temperature range: -25...+85°C Rated
  • Action : 2.5 ± 0.5N
  • Lifetime: 100,000 times
  • Button Size: 6x6x4.3mm/5mm/6mm/7mm/8mm/9mm/10mm/12mm/13mm/15mm
  • Packed in a box
  • Box size: 130x68x20mm
