Triple Axis Gyroscope & Accelerometer IMU - MPU6050 (Soldered Header)

19-00012882
CompanyOEM
In Stock
Ships in 24 Hours
€360
Our quantity discounts:
Quantity
10+
100+
Price
€2.88
€2.52
+ −
Add to wish list
Ask a question
Payments & Shipping

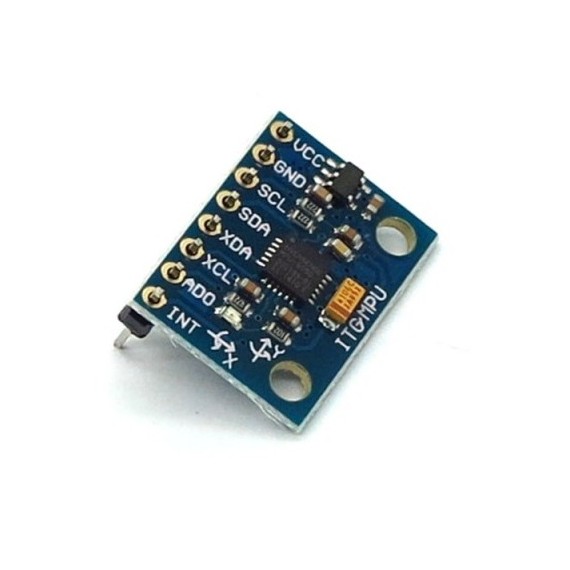

The MPU-6050 sensor module contains an accelerometer and a gyro in a single chip. It is very accurate, as it contains 16-bits analog to digital conversion hardware for each channel. Therefore it captures the x, y, and z channel at the same time. The sensor uses the I2C-bus to interface with the Arduino.

Technical data
  • Chip: MPU-6050
  • Power supply: 3-5V
  • Communication modes: standard IIC communications protocol
  • Chip built-in 16bit ADC converter, 16-bit data output
  • Immersion Gold PCB machine welding process to ensure quality
  • Gyroscope Range: +/-250, +/-500, +/-1000, +/-2000 °/s
  • Acceleration Range: +/-2g, +/-4g, +/-8g, +/-16g
  • Dimensions: 21x16x3mm

Company
OEM
Warranty
Component, not covered by warranty
G. Weight
0.003kg
Sensor Specifications
Sensor Type
  • IMU
Supply Voltage
  • 3.3 V
  • 5 V
Operating Current
3.9mA
Communication Interface
  • I²C (IIC)
