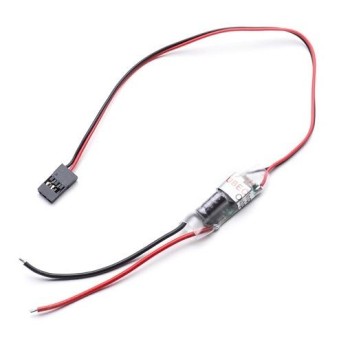

UBEC DC/DC Step-Down (Buck) Converter - 5V 3A output

από OEM
This little circuit board may look tiny but inside is a high efficiency DC/DC step-down converter which can output up to 3 Amp at 5V without the need of...
49-00024160
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
4.60
Χωρίς ΦΠΑ 3.71
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 3.68

ΠΕΡΙΓΡΑΦΗ

This little circuit board may look tiny but inside is a high efficiency DC/DC step-down converter which can output up to 3 Amp at 5V without the need of any heat-sink or forced cooling. (It does get a bit toasty at 3A though) UBEC stands for "universal battery eliminator circuit" and this UBEC is designed to replace a 5V supply in RC planes and 'copters but its also great for any kind of microcontroller or electronics project that runs off of 5V. We tried a half dozen different 'BECs and found this one to be the best in terms of range and stability. You can check the technical tab for the analysis of input/output range and current draw.

To use, connect 6V up to 16V (recommended) to the IN-side wires and 5V will be generated on the OUT-side wires. You'll get 5V (+-5%) regulated output from higher voltage input. 3A output current, 5A peak - if you're trying to draw 3A you'll need to give it a little more than 6V though, 7V works well. The UBEC has built in filter capacitors on the input and output, but its a switching supply so its a little noisy compared to a linear regulator.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Step-Down
Κατασκευαστής
:
OEM
Τάση Εισόδου:
6-16Volt
Τάση Εξόδου:
5Volt
Ένταση Εξόδου:
3Amp
Μικτό Βάρος:
0.007kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Iout  Vin  Iin  Vout

0.5A  6V  0.47A  4.9V

0.5A  7V  0.39A  5.2V

0.5A  9V  0.35A  5.2V

0.5A  12V  0.28A  5.25V

Iout  Vin  Iin  Vout

1A  6V  0.9A  4.8V

1A  7V  0.79A  5.2V

1A  9V  0.67A  5.1V

1A  12V  0.52A  5.2V

Iout  Vin  Iin  Vout

2A  6V  1.85A  4.9V

2A  7V  1.67A  5.1V

2A  9V  1.28A  5.0V

2A  12V  0.97A  4.9V

Iout  Vin  Iin  Vout

3A  7V  2.6A  5.0V

3A  9V  1.88A  4.7V

3A  12V  1.43A  4.8V
