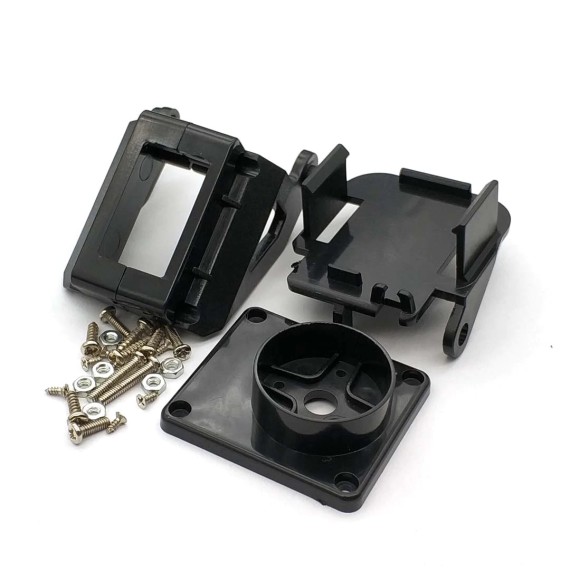

Unassembled Mini Pan-Tilt Kit (Without Micro Servos)

από OEM
This unssembled pan-tilt kit is the perfect way to give your project customized full range motion.
19-00011968
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
2.90
Χωρίς ΦΠΑ 2.34
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 2.32 2.03

ΠΕΡΙΓΡΑΦΗ

This unassembled pan-tilt kit is the perfect way to give your project customized full range motion! The pan-tilt can rotate roughly 180° from side-to-side and can tilt downwards roughly 150° (it may be less depending on the servos you use, of course).  This version comes in kit form without any servos, unlike our fully assembled version so if you have a bunch of servos already, or want to customize with one of our many micro servo options such as feedback-type, this is probably the better option for you. (The metal-gear 9g micro servos won't fit!)

Since the motors are plain, every-day analog servos, you can use any microcontroller or driver. They're good for beginners who want to make stuff move and the pan-tilt is an easy way to give whatever you're making both left-right and up-down motion. In our demo, we hooked this up with a Trinket Pro and made it do a little dance with the Arduino Servo library

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.018kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Dimensions:
    • Base: 37x33x3mm
    • Mounting Hole Distances: 30x26mm
    • Standing Height (zero tilt): 67mm
    • Top Platform: 38x36mm
  • Weight: 37g
