UNIHIKER is a single-board computer that brings you brand new experience. It features a 2.8-inch touchscreen, Wi-Fi and Bluetooth. It is equipped with light sensor, accelerometer, gyroscope and microphone. With built-in co-processor, it is able to communicate with various analog/digital/I2C/UART/SPI sensors and acuators.

UNIHIKER brings a whole new experience for developers with its pre-installed software, allowing for an incredibly fast and easy start. Featuring a built-in Jupyter Notebook (a browser-based programming environment), developers can program the single board computer using a smartphone or tablet.

Compact, feature-rich, and user-friendly, UNIHIKER offers an innovative development experience for learning, coding, and creating. Unleash your imagination and embark on a new journey with UNIHIKER.

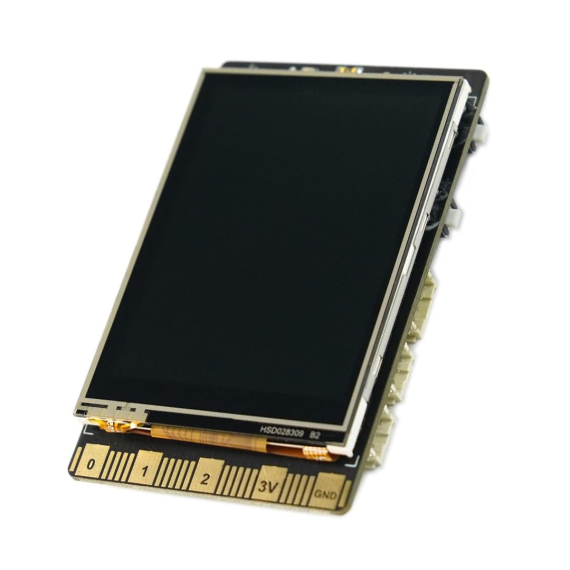

Built-in 2.8-inch Touch Screen

Enables you to visualize sensor data in the form of charts, graphs, and even dynamic animations.

Incredibly Fast and Easy Start

Simply Connect to your Computer and start Coding!

Using Python to Sense and Control

The integrated PinPong control library allows developers to directly control UNIHIKER's built-in sensors and hundreds of connected sensors and actuators using Python.

With Built-in IoT service

The built-in SIoT service on UNIHIKER allows users to store data through the MQTT protocol and provides real-time web data access. The best part is that all data is stored within the device itself.

Can be Programmed Wirelessly

UNIHIKER can be programmed from a computer, an iPad, even a phone.
It also supports Hotspot, you can play it from anywhere.

Supports Popular Coding Software

Of course, just like other single board computers, UNIHIKER supports VS Code, VIM, Node-Red and Thonny.


Technical Specifications

CPU

Quad-Core ARM Cortex- A35, @ 1.2GHz

RAM

512MB

Flash

16GB

OS

Debian

Wi-Fi

2.4G

BT

Bluetooth 4.0

Screen

2.8inch Touch Screen, 240x320px

MCU

GD32VF103

Sensor

Button, Microphone, Light Sensor, Accelerometer, Gyroscope

Actuator

Led, Buzzer

Ports

USB Type-C, USB-A, MicroSD, Gravity 3pin/4pin port, Edge connector

Power

5V 2A via USB Type-C

Size

51.6x83x13 mm

Overview



UNIHIKER: Ένας Linux-based μικροϋπολογιστής με οθόνη και υποστήριξη IoT

Το UNIHIKER είναι ένας μικροϋπολογιστής (Single Board Computer) που διαθέτει οθόνη αφής 2,8 ιντσών και υποστηρίζει συνδεσιμότητα Wi-Fi και Bluetooth. Είναι εξοπλισμένο με αισθητήρα φωτός, επιταχυνσιόμετρο, γυροσκόπιο και μικρόφωνο. Όλα αυτά προγραμματίζονται με την βιβλιοθήκη PinPong Python. Με τον ενσωματωμένο του επεξεργαστή, είναι σε θέση να επικοινωνεί με αναλογικούς, ψηφιακούς, I2C, UART και SPI αισθητήρες και actuators.

Company
DFRobot
Part Number
DFR0706-EN
Warranty
Component, not covered by warranty
G. Weight
0.192kg
