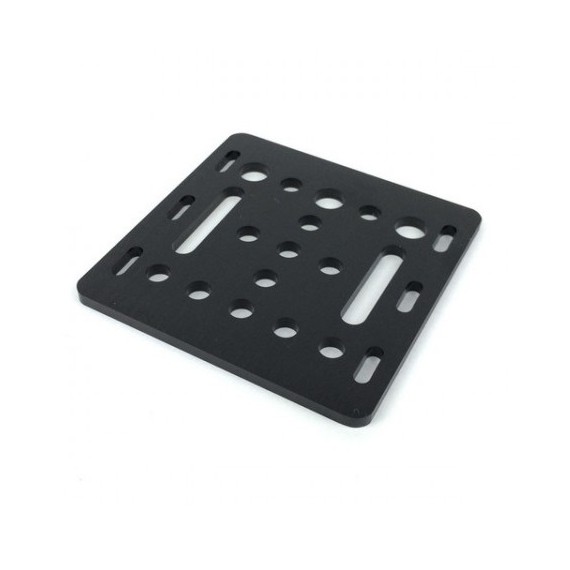

V-Slot Gantry Plate 20mm

by OEM
This plate was designed to be used when a smaller, lighter plate is desired on the 20mm side of V-Slot. This plate is great when full size wheels are...
14-00020113
Gross Weight: 0.01kg
Company: OEM
Part Number: Gantry Plate 20mm black
Made in: EU
In Stock
Ships in 24 Hours
Available in store
3.60
Without VAT 2.90
+
WISHLIST COMPARE

DESCRIPTION

This plate was designed to be used when a smaller, lighter plate is desired on the 20mm side of V-Slot. This plate is great when full size wheels are preferred along with a smaller foot print needed.

We want to ensure that we simplify belt clamping so we have incorprated 'Fold-Through' Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.

We have also added two 5mm slots that allow you to attach spacers for 90 degree belt mounts under or on top of the plate as well.

This simplifies the overall building process and allows for quick assembly times of motion systems.



NOTES

  • This plate was designed to be used with V-Slot and is not comptible with OpenRail.
  • If you want V-Slot Gantry Set 2020 Xtreme buy it from HERE!

SPECIFICATIONS

Series:
  • V-Slot
Material:
Aluminium

EXTRA SPECIFICATIONS

  • 6063-T6 Aluminum
  • Black Anodized Finish
  • 3mm~ (1/8") Thick
