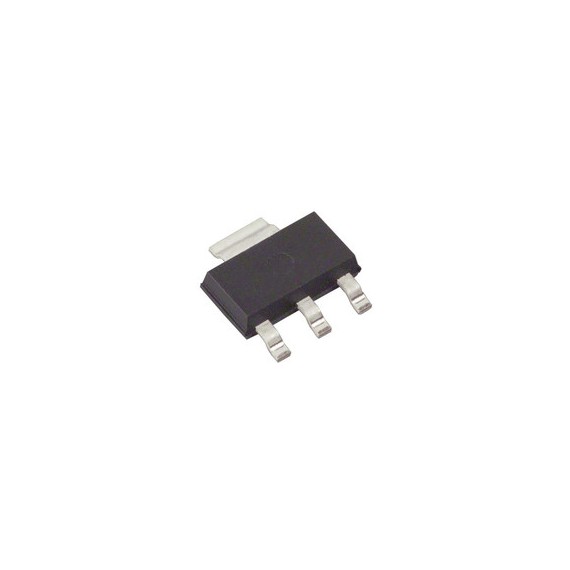

Voltage Regulator LD1117 1.8V SMD

05-90111718
Made in: USA
Out of Stock
Product out of stock
No stock in retail store
1.00
Without VAT 0.81

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Output Voltage:
1.8Volt

EXTRA SPECIFICATIONS

  • Mounting Style: SMD/SMT
  • Package/Case: SOT-223-4
  • Output Voltage: 1.8 V
  • Output Current: 1.5 A
  • Number of Outputs: 1 Output
  • Polarity: Positive
  • Quiescent Current: 10 mA
  • Input Voltage MAX: 15 V
  • Output Type: Fixed
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 125 C
  • Load Regulation: 1 mV
  • Series: LM1117
  • Dropout Voltage: 1.2 V
  • Packaging: Reel
  • Packaging: MouseReel
  • Packaging: Cut Tape
  • Dropout Voltage - Max: 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA
  • Ib - Input Bias Current: 5 mA
  • Line Regulation: 1 mV
  • Operating Supply Current: 5 mA
  • Operating Temperature Range: - 40 C to + 125 C
  • Factory Pack Quantity: 1000
  • Voltage Regulation Accuracy: +/- 1 %
