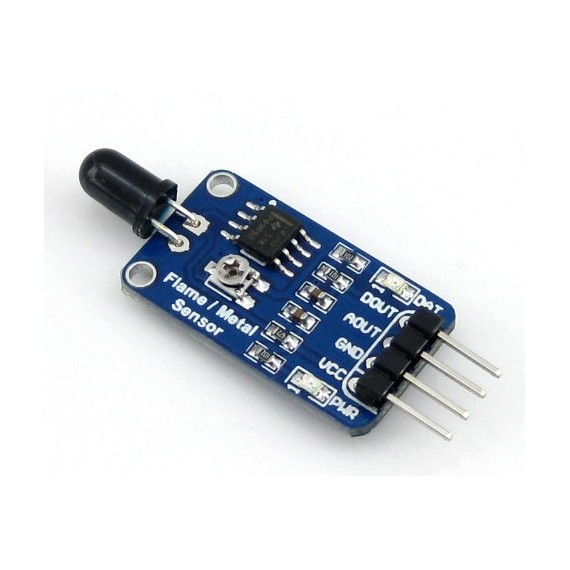

Waveshare Flame Sensor

Sensitive to flame spectrum Features wide range voltage comparator LM393 Adjustable sensitivity Signal output indicator
31-00009521
Volumetric weight: 0.01kgs
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
Available in store
3.50
Without VAT 2.82
+
WISHLIST COMPARE

DESCRIPTION

  • Sensitive to flame spectrum
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator

SPECIFICATIONS

Sensor Type:
  • Flame
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Analog
  • Digital
Communication Protocol:
  • Without

Notes

  • The Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.

EXTRA SPECIFICATIONS

  • Spectrum range: 760nm ~ 1100nm
  • Detection angle: 0 - 60 degree
  • Power: 3.3V ~ 5.3V
  • Operating temperature: -25℃ ~ 85℃

FEATURES

  • Fire detection
  • Fire fighting robot
  • Fire alarm

Dimensions

  • 27.3 x 15.4mm
  • Mounting holes size: 2.0mm

Connection

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
