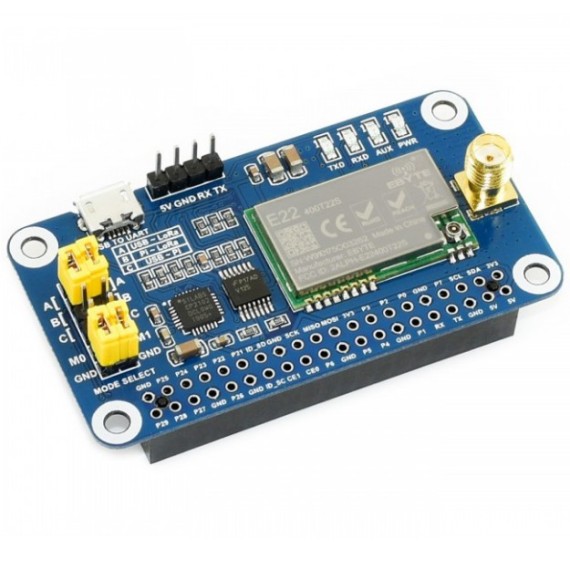

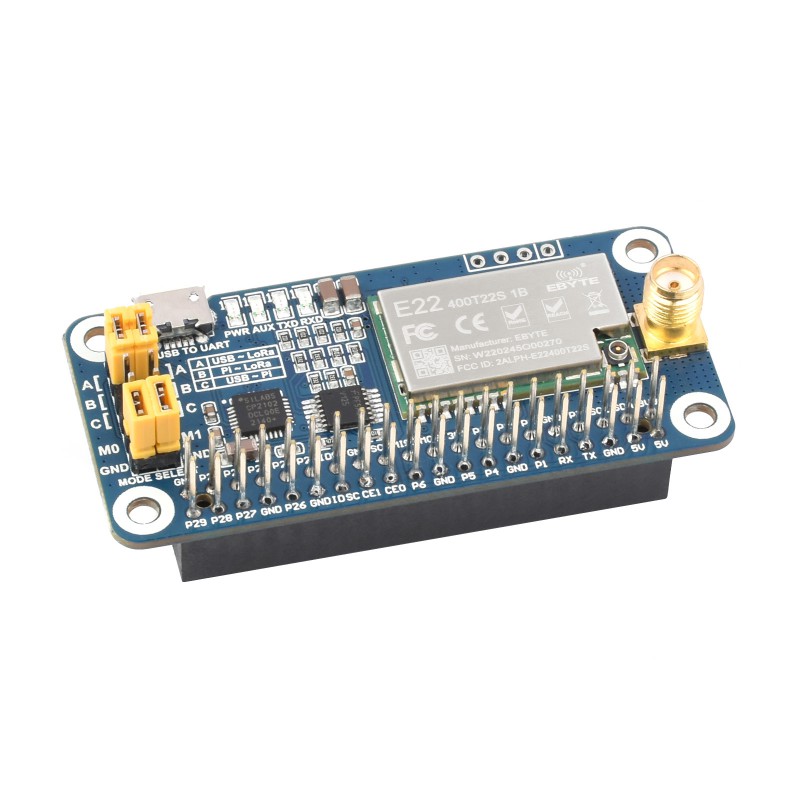

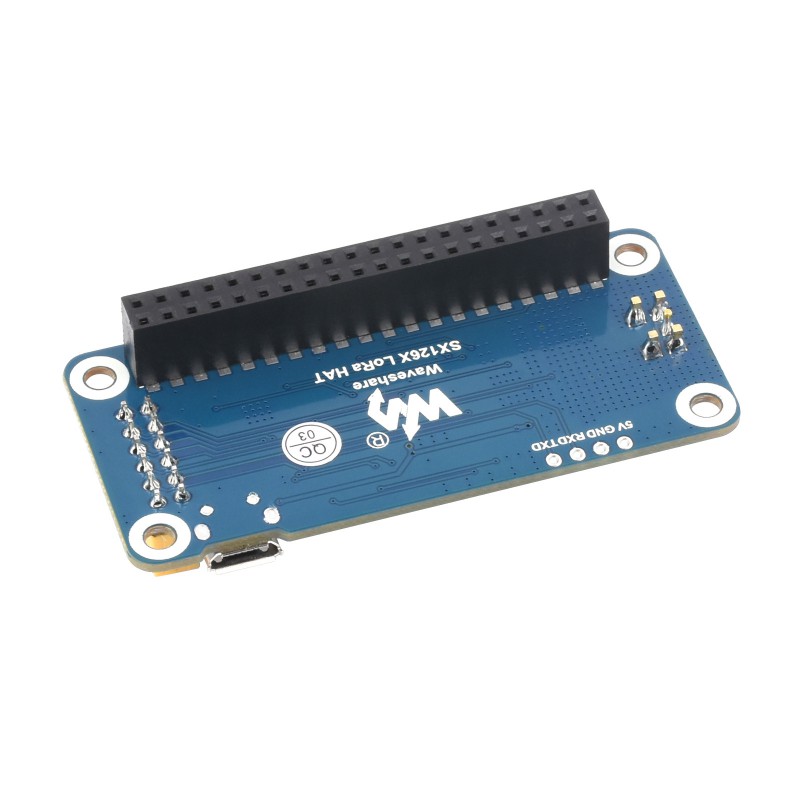

Waveshare LoRa HAT

31-00016804
WHS16804
ΚατασκευαστήςWaveshare Part NumberWHS16804 ΣυμβατότηταRaspberry Pi 4, Raspberry Pi 5, Raspberry Pi Zero Τύπος HATWireless Communication
Διαθέσιμο
Αποστολή σε 24 ώρες
2990
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
26.91
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

By utilizing the new-generation LoRa spread spectrum modulation technology, the SX126X LoRa HAT achieves a communication range of up to 5 km, with support for auto-repeating to enable even longer transmission distances. Additional features include Wake on Radio, wireless configuration, carrier sensing, communication key, and more.

Compared to standard SX127X LoRa modules, the SX126X LoRa HAT offers longer communication range, higher data rates, lower power consumption, and enhanced security and interference resistance, making it well-suited for a wide range of applications such as industrial control, smart home, and data collection.

Key features
  • Adopts SX1268/SX1262 module, options for 433MHz/868MHz frequency band

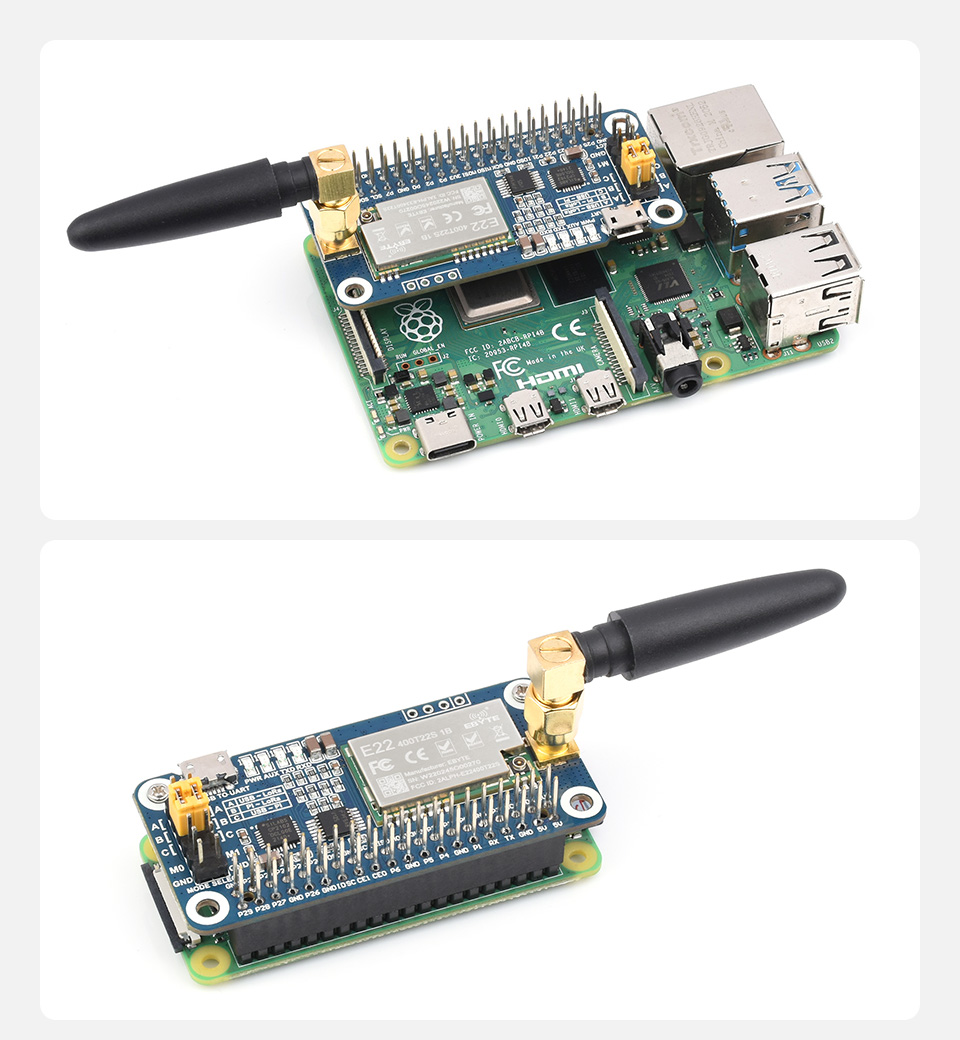

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Onboard CP2102 USB TO UART converter, for serial debugging
  • Brings the UART control interface, for connecting host boards like Arduino/STM32
  • 4× LED indicators, easy to check the module status
  • LoRa spread spectrum modulation technology, up to 81 available signal channels, longer communication distance, more robust to interference
  • Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region
  • Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
  • Customizable communication key which won't be retrieved, greatly improves the security of user data
  • Supports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment
  • Supports RSSI signal intensity indicating, for evaluating signal quality, tuning the network
  • Supports wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
  • Supports fixed-point transmission, broadcast, signal channel monitor
  • Comes with online development resources and manual (examples for Raspberry Pi/STM32)

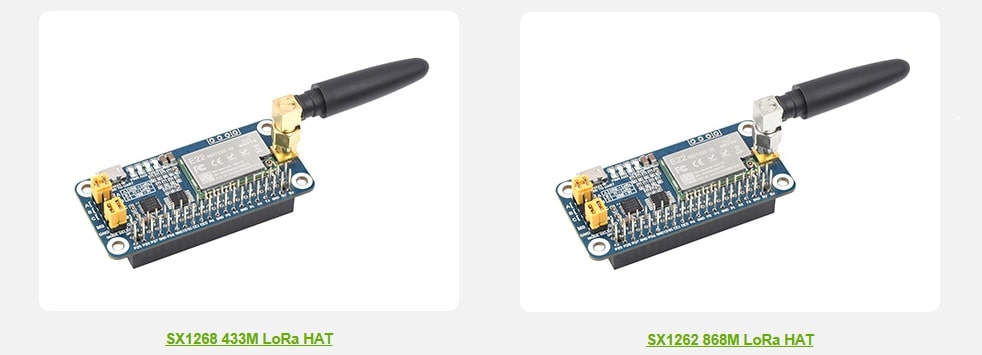

Available options



Technical data
ModelSX1268 433MHz LoRa HATSX1262 868MHz LoRa HAT
GRobotronics SKU31-0001680431-00016806
RF moduleSX1268SX1262
Frequency band410.125–493.125 MHz850.125–930.125 MHz
Antenna433MHz antenna (2dBi)868MHz antenna (2dBi)
Radio rate0.3kbps – 62.5kbps (programmable)
Transmit power22.0dBm (10/13/17/22dBm programmable)
Receive sensitivity-147dBm (radio rate 2.4kbps)
Power consumptionTransmit current: 110mA (transient consumption)
Receive current: 11mA
Sleep current: 2uA (LoRa module software shutoff)
Transmit current: 133mA (transient consumption)
Receive current: 11mA
Sleep current: 2uA (LoRa module software shutoff)
Communication interfaceUART (TTL level)
Baudrate1200bps – 115200bps (9600bps by default)
Packet length240 Byte (32/64/128/240 Byte programmable)
Cache1000 Byte
Experimental range5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps)
Power supply5V
Logic level3.3V/5V
Operating temperature-40℃ – 85℃
Applicationssmart home, industrial sensors, building automation, smart meters, and other IoT applications
Applicable regionEurope, Asia, Africa

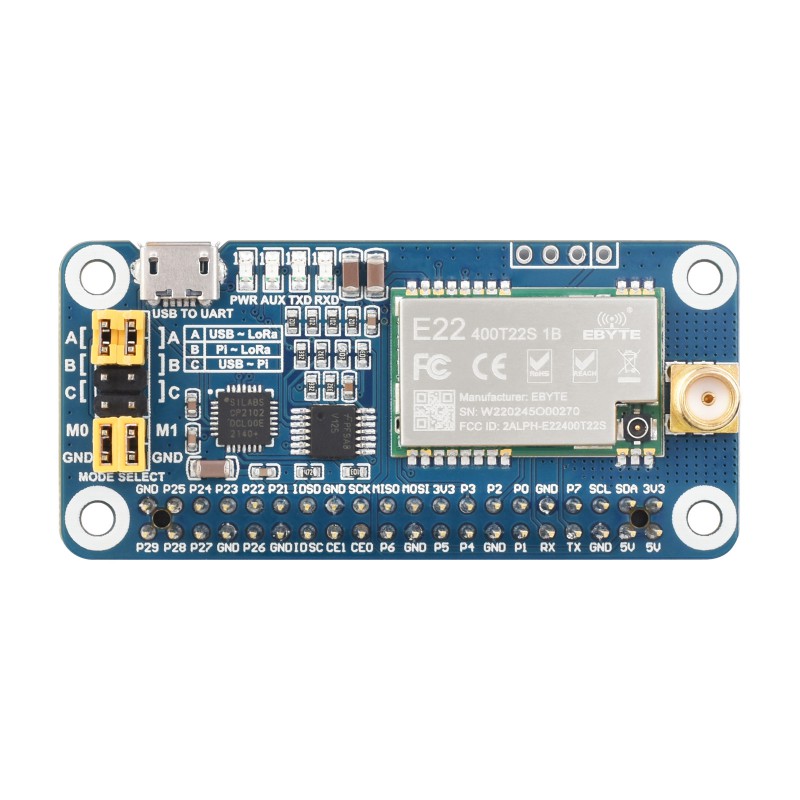

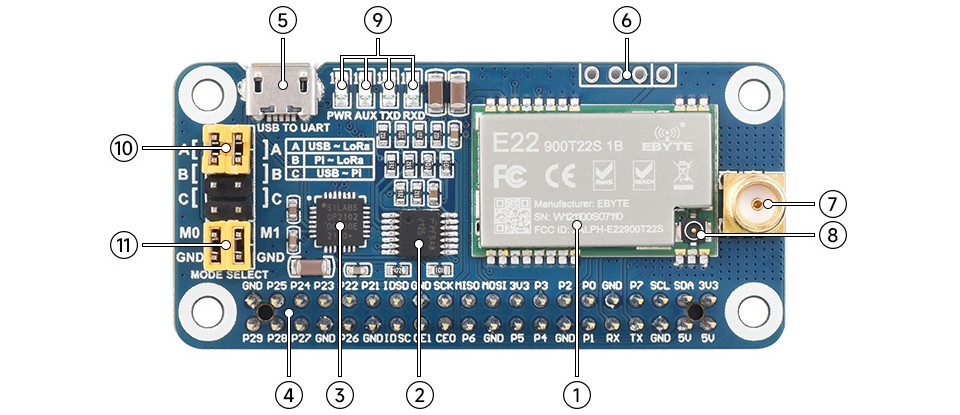

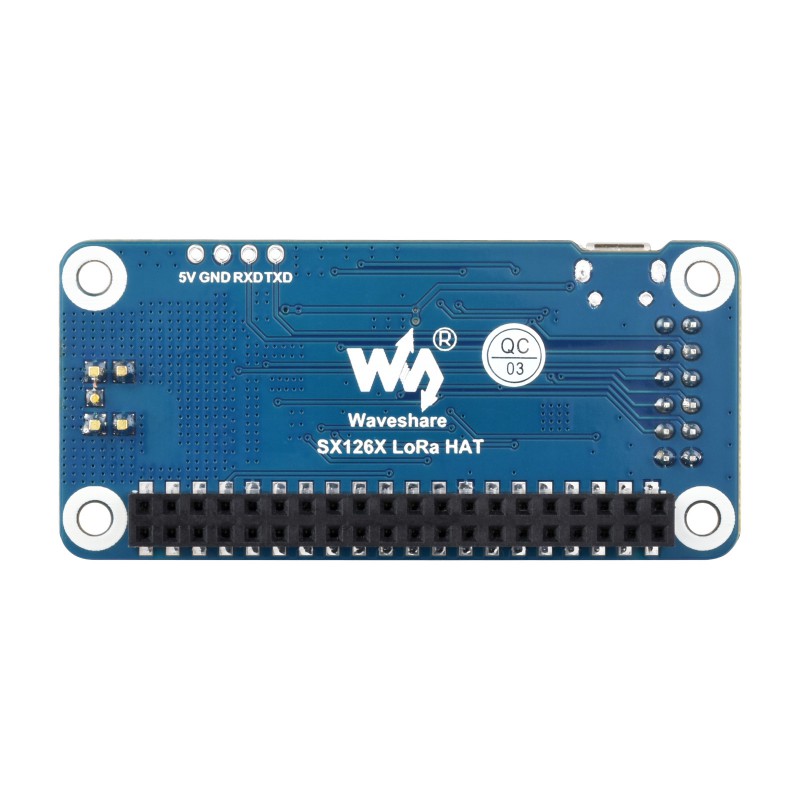

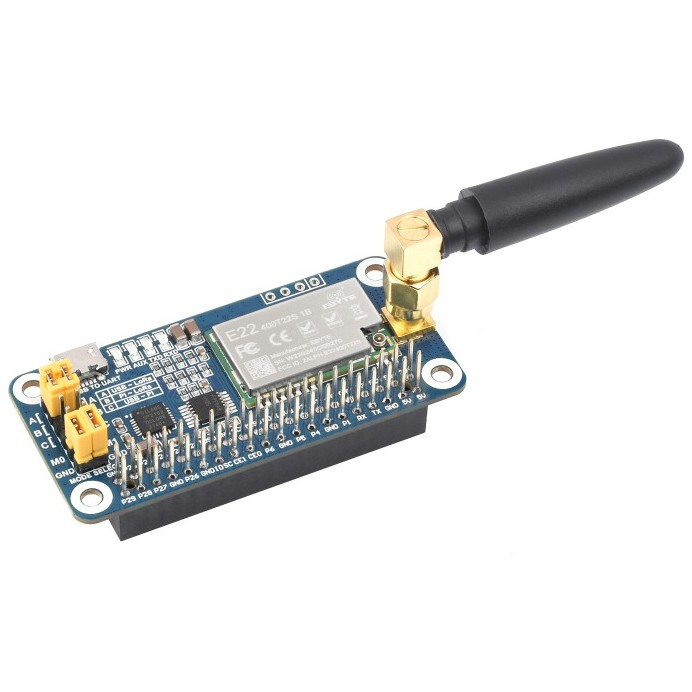

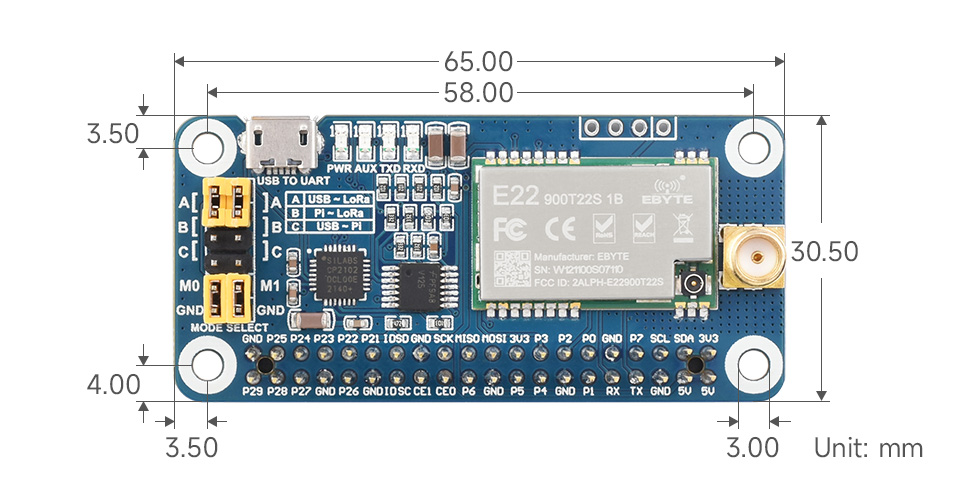

Hardware layout
  1. SX1268/SX1262 LoRa module
  2. 74HC125V: voltage level translator
  3. CP2102: USB TO UART converter
  4. Raspberry Pi GPIO connector for connecting with Raspberry Pi
  5. USB TO UART port
  6. UART header for connecting host boards like STM32/Arduino
  7. SMA antenna connector
  8. IPEX antenna connector
  9. Indicators:
    RXD/TXD: UART RX/TX indicator
    AUX: auxiliary indicator
    PWR: power indicator
  10. UART selection jumpers
    A: control the LoRa module through USB TO UART
    B: control the LoRa module through Raspberry Pi
    C: access Raspberry Pi through USB TO UART
  11. LoRa mode selection jumpers
    short M0, short M1: transmission mode
    short M0, open M1: configuration mode
    open M0, short M1: WOR mode
    open M0, open M1: deep sleep mode

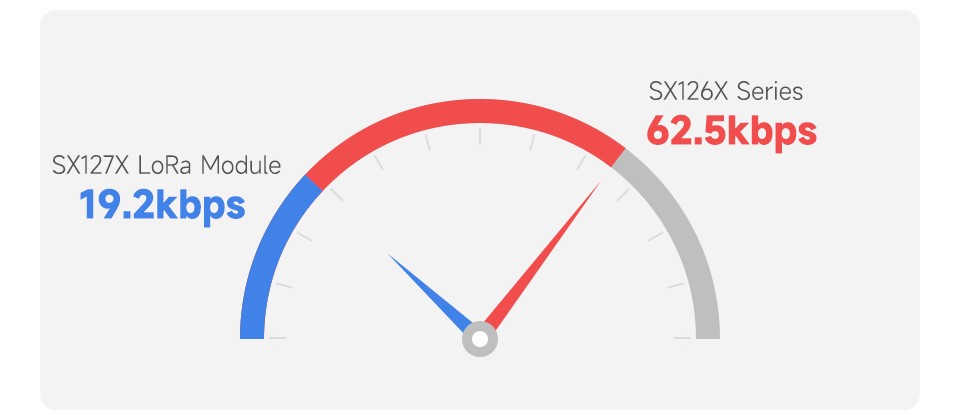

Faster transmission speed

The radio rate is up to 62.5kbps, 3× the speed of the SX127X series LoRa module.

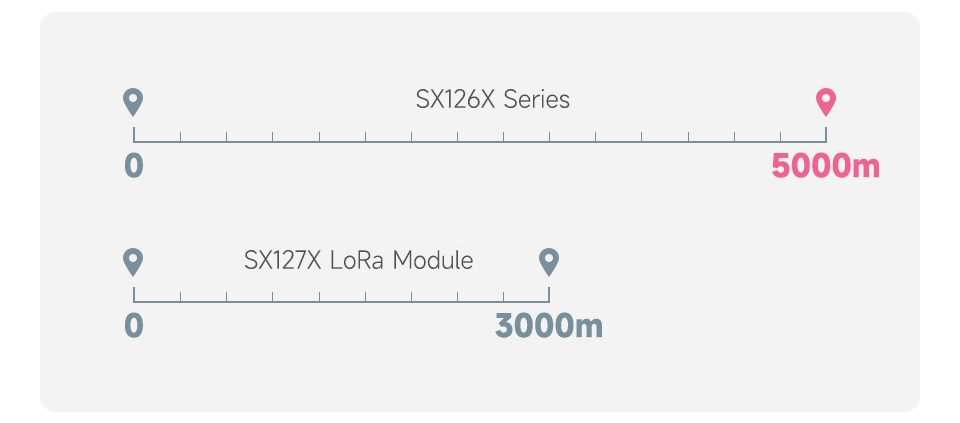

Supports long-distance transmission

Up to 5km transmission distance, 65% longer than the SX127X LoRa module with the same power.


Application scenarios
  • Industrial Manufacturing: Can reduce wiring and improve production efficiency, easy to manage.
  • Smart Home: Good diffraction performance and wide coverage for villa-level deployment.
  • Smart Farm: Accurately monitor the details of each operation area for statistical management and finding potential risks.
  • Hotel Scheme: Can facilitate centralized management in the backend, improve regulatory efficiency.
Supports Wake on Radio

Low power consumption and more power saving.

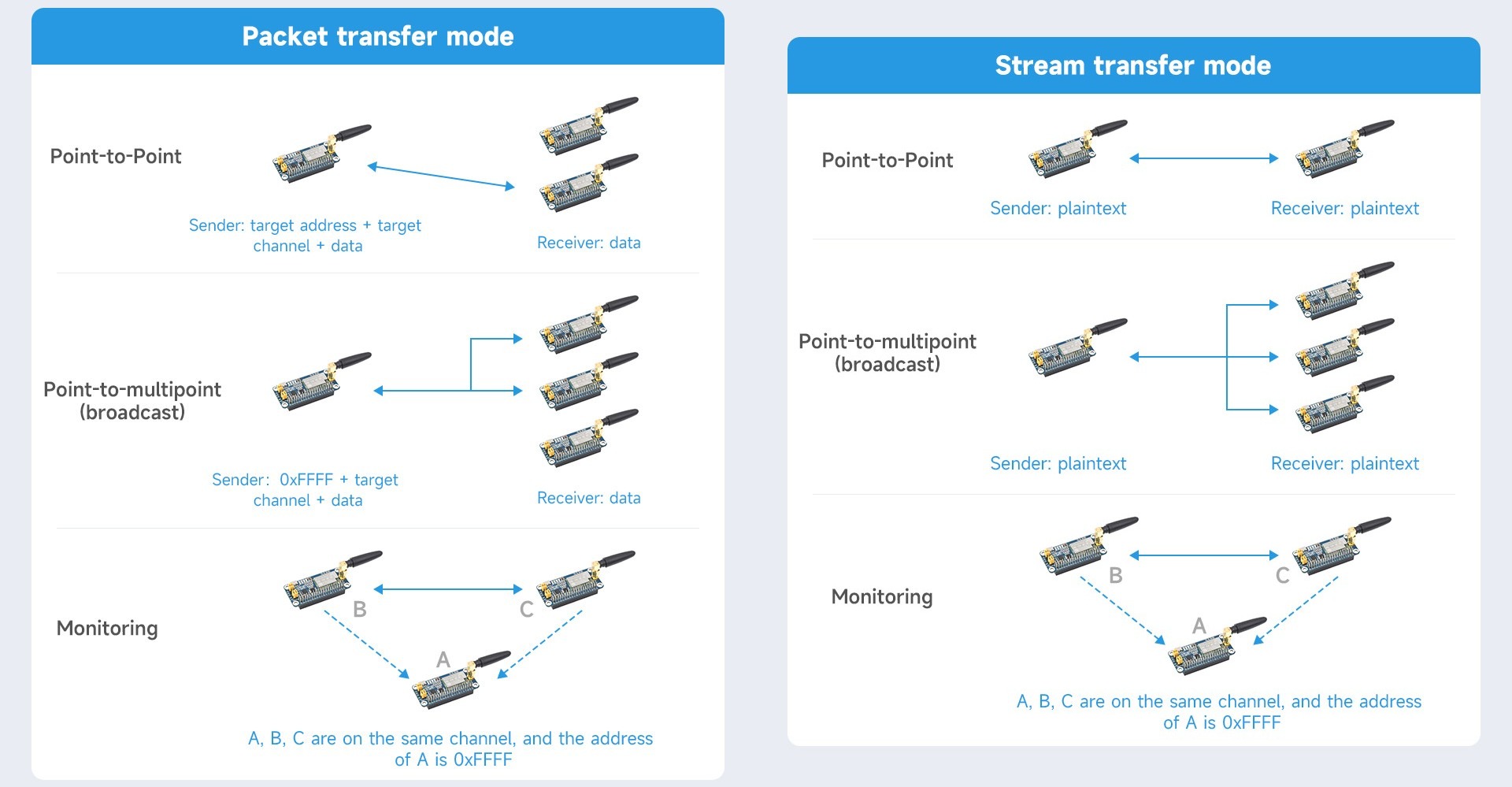

Supports multiple transmission methods

Fixed-point transmission, broadcast, fixed-point broadcast, channel monitoring.

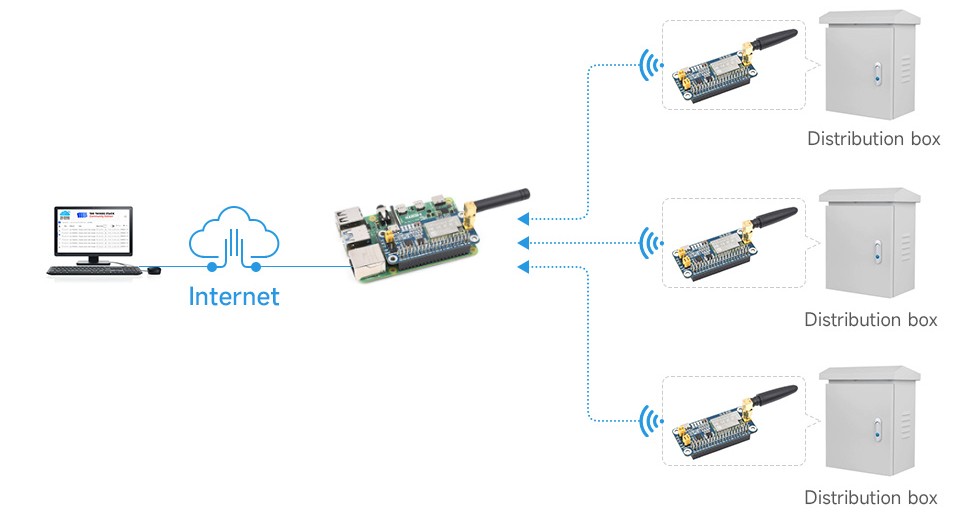

Usage example

Automatic monitoring and data collection, reducing labor costs; There is no need for cable connection and it is easy to install. LoRa spread spectrum has strong anti-interference ability and supports stable transmission in the complex environment. Note: This series does not support LoRaWAN protocol.

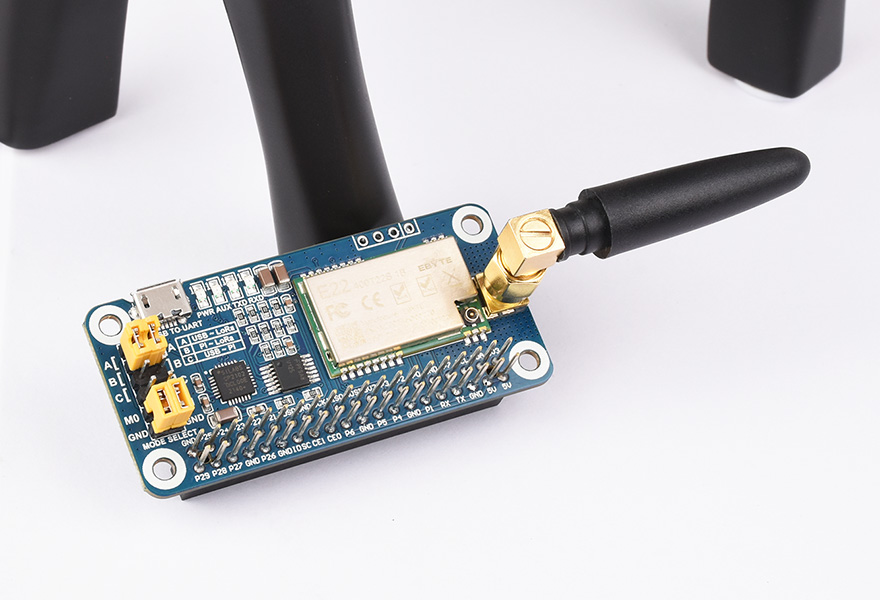

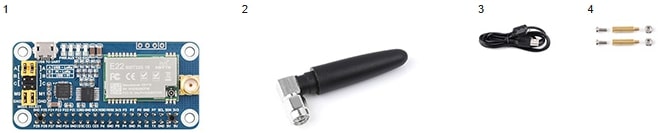

Package contents
  • GRobotronics SKU: 31-00016804
    • 1. SX1268 433M LoRa HAT ×1
    • 2. 433MHz Antenna ×1
    • 3. USB type A plug to micro plug cable ×1
    • 4. Screws pack ×1

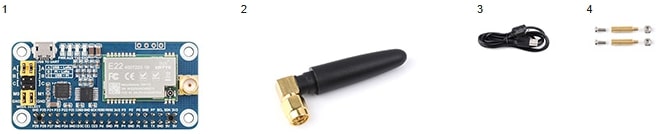

  • GRobotronics SKU: 31-00016806
    • 1. SX1268 433M LoRa HAT ×1
    • 2. 868MHz Antenna ×1
    • 3. USB type A plug to micro plug cable ×1
    • 4. Screws pack ×1


Κατασκευαστής
Waveshare
Part Number
WHS16804
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.071kg
Συχνότητα
410–493 MHz
Συμβατότητα
  • Raspberry Pi 4
  • Raspberry Pi 5
  • Raspberry Pi Zero
Τύπος HAT
  • Wireless Communication
