Waveshare NB-IoT/Cat-M(eMTC)/GNSS HAT

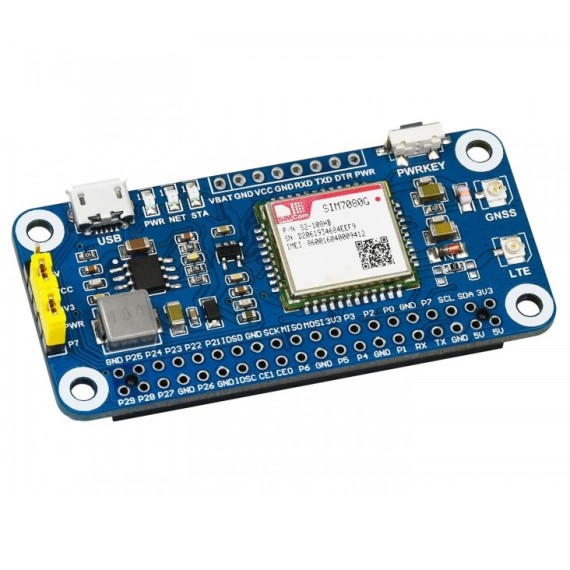

NB-IoT/Cat-M(eMTC)/GNSS HAT for Raspberry Pi, Based on SIM7080G, Globally Applicable This is a telecommunication HAT which features multi...
31-00017693
Gross Weight: 0.21kg
Company: Waveshare
Part Number: 17693
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

DESCRIPTION

NB-IoT/Cat-M(eMTC)/GNSS HAT for Raspberry Pi, Based on SIM7080G, Globally Applicable

This is a telecommunication HAT which features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System).

With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards.

This HAT supports global bands of NB-IoT and Cat-M, as well as positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

THE PACKAGE INCLUDES

  1. SIM7080G Cat-M/NB-IoT HAT x1
  2. LTE antenna x1
  3. GPS External Antenna (B) x1
  4. USB type A plug to micro plug cable x1
  5. 2×20PIN female header x1
  6. RPi screws pack (2pcs) x1



SPECIFICATIONS

HAT Type:
  • Wireless Communication
Raspberry Compatible:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

SPECIFICATIONS

  • Communications Specifications
  NB-IOT CAT-M (EMTC)
Band NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
Emitting power Class 5 (0.125W@LTE)
Data rate Uplink≤150kbps
Downlink≤136kbps
Uplink≤1119kbps
Downlink≤589kbps
Supported SIM Card NB-IoT / Cat-M card (1.8V SIM card ONLY)
Applicable region Global
  • GNSS Specifications
    • Receiver type
      • 16-channel
      • C/A code
    • Bands
      • GNSS L1: 1575.42±1.023MHz
      • GLONASS: 1597.5~1605.8 MHz
      • BeiDou: 1559.05~1563.14 MHz
      • Galileo L1: 1575.42±1.023MHz
    • Update frequency: 1 Hz (default)
    • Data format: NMEA-0183
    • Antenna: active antenna
  • Other Specifications
    • Power supply voltage: 5V
    • Logic level: 5V / 3.3V (configured via jumper)
    • Overall current (idle mode): 39mA
    • Module sole current (VBAT=3.8V):
      • Idle mode: 10mA
      • Sleep mode: 1.2mA
      • PSM mode: 3.2uA
      • eDRX mode: 0.59mA (eDRX=81.92s)
    • Operating temperature: -40°C ~ 85°C
    • Storage temperature: -45°C ~ 90°C
    • Dimension: 30.2x65mm

FEATURES

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP / UDP / HTTP / HTTPS / TLS / DTLS / PING / LWM2M / COAP / MQTT
  • Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 3x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
